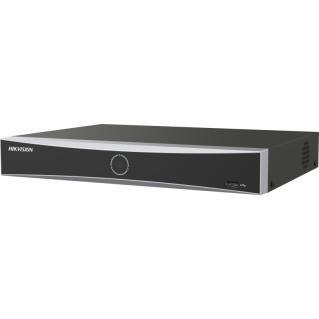

HIKVISION DS-7604NXI-K1/VPro 4-ch 1U AcuSeek K VPro NVR

HIKVISION DS-7604NXI-K1/VPro 4-ch 1U AcuSeek K VPro NVR

查詢價錢

4-ch 1U AcuSeek K VPro NVR

  • Up to 4-ch AcuSeek and AcuSearch function
  • Adopt Hikvision AcuSense technology to minimize manual effort and security costs
  • Accurate perimeter protection effectively reduces false alarms
  • Automatic cameras connection and configuration
  • Up to 4-ch IP camera inputs
  • Up to 3-ch@12 MP or 6ch@8 MP or 12-ch@4 MP or 24-ch@1080p decoding capacity
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 40 Mbps incoming bandwidth

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
貨號: DS-7604NXI-K1-VPro 分類: , ,

描述

DS-7604NXI-K1/VPro

4-ch 1U AcuSeek K VPro NVR

Specification

Video And Audio

  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80 Mbps
  • IP Speaker Input4-ch
  • Video Output ModeHDMI/VGA independent output
  • HDMI Output4K（3840×2160 ）/30Hz，2K（2560×1440 ）/60Hz，1080P（1920×1080 ）/60Hz，UXGA （1600×1200 ）/60Hz，SXGA（1280×1024 ）/60Hz，720P （1280×720 ）/60Hz
  • VGA Output1080P（1920×1080 ）/60Hz，UXGA（1600×1200 ）/60Hz，SXGA（1280×1024 ）/60Hz， 720P （1280×720 ）/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

  • Decoding FormatH.265/H.265+/H.264/H.264+
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF
  • Synchronous playback4-ch
  • Decoding CapabilityAI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote Connection128

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 16 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/Out4/1

General

  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)319 mm × 239 mm × 48 mm (12.6 × 9.4 × 1.9 inch)
  • Weight≤ 1.2 kg (without HDD, 2.6 lb.)

Certification

  • CECE,CB,REACH,WEEE,UKCA,RCM,IC CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。 官方規格書 PDF
