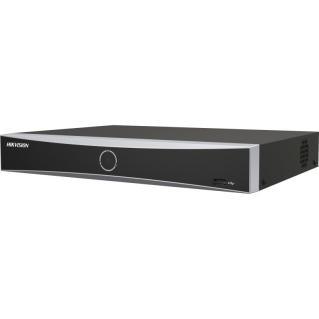

HIKVISION DS-7604NXI-K1(D) 4-ch 1U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth80 Mbps
• Video Output ModeHDMI1/VGA simultaneous output
• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch
• Decoding CapabilityAI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/ 8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 16 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/OutGUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, C roatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
• Weight≤1 kg (without HDD, 2.2 lb.)

Certification

• Obtained CertificationCE KC WEEE REACH ROHS BIS CB RCM IC LOA UKCA
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
