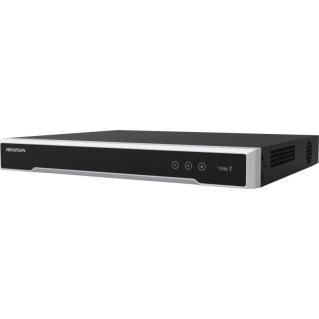

HIKVISION DS-7608NI-M2/8P 8-ch 1U 8 PoE 8K NVR

Video And Audio

• IP Video Input8-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
• Incoming Bandwidth128 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI/VGA independent output
• HDMI Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• VGA Output1920 × 1080/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Decoding Dual -Stream Recording Support

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
• Decoding Capability2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);8-ch@8 MP (30 fps); Synchronous Playback 8-ch
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.71 1alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
• Remote Connection128
• PoE Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3 af/at
• PoE Budget≤ 120 W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each disk
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD and PoE off)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
• Weight≤ 3 kg (without HDD, 2.2 lb.) Certification FCC Part 15 Subpart B, ANSI C63.4 -2014

Certification

• CEEN 55032:2015+A1:2020, ENIEC61000 -3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130 -4:2011+A1:2014, EN 55035:2017+A11:2020 Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support : AES128 IEEE802.1X(EAP-TLS) Network Acc
