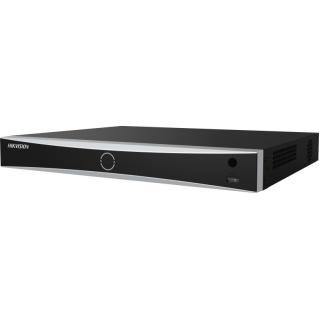

HIKVISION DS-7608NXI-I2/S 8-ch 1U AcuSense 4K NVR

查詢價錢

8-ch 1U AcuSense 4K NVR

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream
Up to 4-ch facial recognition for face picture
Up to 8-ch IP camera inputs
Up to 16-ch 1080p decoding capability
Physical Interface No. Description No. Description 1 LAN1 and LAN2 network interfaces 6 USB 3.0 interface and VIDEO OUT 2 AUDIO IN//AUDIO OUT 7 Power supply 3 HDMI interface 8 GND 4 VGA interface 9 Power switch 5 ALARM IN/OUT

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

DS-7608NXI-I2/S

8-ch 1U AcuSense 4K NVR

IP Video Input8
Incoming Bandwidth80 Mbps
Outgoing Bandwidth256 Mbps
Video Output ModeHDMI/VGA independent output
HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback16-ch
Decoding Capability16-ch @ 1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2 Dual -Stream Recording Support

Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network ProtocolAPI Compatible Browser Camera Access Protocol ONVIF(Version 2.5), RTSP

SATA2 SATA interfaces
CapacityUp to 8 TB capacity for each disk
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 General GUI Language
Alarm In/Out4/1

Power Supply≤ 40 W
ConsumptionDS-7608NXI-I2/S(标配)(C),DS-7608NXI-I2/S(中性)(C):≤ 15W DS-7608NXI-I2/S(标配)(C)/阿联酋HTL:≤ 30 W (without HDD)
Working Temperature-10℃ ～＋55℃
Working Humidity10% to 90% Chassis 1U
Dimension (W × D × H)385 × 315 ×52 mm ( 11.6″× 9.5″ × 1.6″)
Weight≤ 1.6 kg (3.5 lb)

CECyber Security EN 303645 N/A Secure Boot N/A Secure Component Verification SVC N/A Password Protection N/A IP & MAC Address Filtering N/A HTTPS Encryption N/A Live View & Playback Stream Encryption N/A IEEE802.1X(EAP-TLS) Network Access Control N/A Signed Firmware N/A Others N/A

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。官方規格書 PDF
