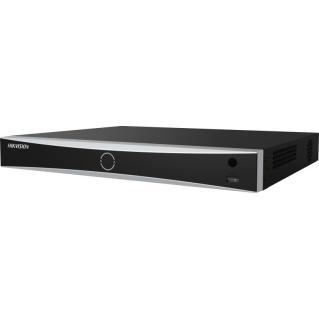

HIKVISION DS-7616NXI-I2/16P/S 16-ch 1U 16 POE AcuSense 4K NVR

Video And Audio

• IP Video Input16
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI/VGA independent output
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Outpu t 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback16-ch
• Decoding Capability16-ch @ 1080p (30 fps) Dual -Stream Recording Support
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolAPI Compatible Browser Camera Access Protocol ONVIF(Version 2.5), RTSP
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3 af/at
• PoE Budget≤ 200W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk Serial Interface RS-485 (half -duplex), RS-232, Keyboard
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 General GUI Language
• Alarm In/Out4/1

General

• Power Supply≤ 280 W
• Consumption≤ 15W
• Working Temperature-10℃ ～＋55℃
• Working Humidity10% to 90% Chassis 1U
• Dimension (W × D × H)385 × 315 ×52 mm ( 11.6″× 9.5″ × 1.6″)
• Weight≤ 3 kg (6.6 lb)

Certification

• CECyber Security EN 303645 N/A Secure Boot N/A Secure Component Verification SVC N/A Password Protection N/A IP & MAC Address Filtering N/A HTTPS Encryption Support Live View & Playback Stream Encryption N/A IEEE802.1X(EAP-TLS) Network Access Control N/A Signed Firmware N/A Others N/A
