描述
海康威視 DS-7616NXI-I2/16P/VPro 是 16 路 I/VPro 系列網絡錄影機，支援 AcuSeek 以文字搜尋錄影，設 16 個 PoE 埠，HDMI 最高 4K 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

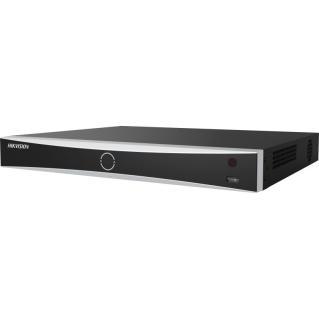

DS-7616NXI-I2/16P/VPro
I/VPro Series NVR with AcuSeek
Specification
Video And Audio
- IP Video Input16
- Incoming Bandwidth192 Mbps
- Outgoing Bandwidth256 Mbps
- Video Output ModeHDMI/VGA independent output
- HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
- VGA Output1920 × 1080/60Hz, 1280 × 720/60Hz
- CVBS OutputNA
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4
- Recording Resolution32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/D CIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
Network
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE StandardIEEE 802.3 af/at
- PoE Budget≤ 200W
Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 20 TB capacity for each disk Serial Interface NA
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out4/1
General
- Power Supply≤ 180 W
- Consumption≤ 50W
- Working Temperature-10℃ ～＋55℃
- Working Humidity10％～90％ Chassis 1U
- Dimension (W × D × H)384 × 371 × 52 mm（15.12" × 12.48" × 2.03" ）
- Weight≤ 4 kg (6.6 lb)
Certification
- CECE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4 Typical Application Typical Application
