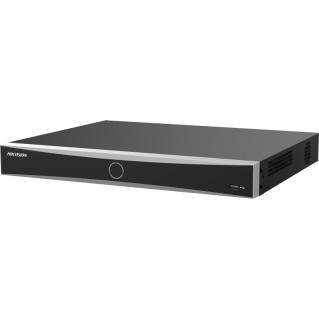

HIKVISION DS-7616NXI-K2/16P/VPro 16-ch 1U 16 PoE AcuSeek K VPro NVR

Video And Audio

• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth160 Mbps
• IP Speaker Input4-ch
• Video Output ModeHDMI/VGA independent output
• HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz, UXGA (1600 × 1200)/60 Hz, SXGA (1280 × 1024)/60 Hz, 720P (1280 × 720)/60 Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding FormatH.265, H.265+, H.264, H264+
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback16-ch
• Decoding CapabilityAI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• PoE StandardIEEE 802.3af/at
• PoE Budget≤ 200W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm In/Out4/1

General

• Power Supply200 to 240 VAC, 50 to 60 Hz
• Consumption≤ 15 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)384 mm × 317 mm × 52 mm (15.1 × 12.5 × 2.0 inch)
• Weight≤ 3 kg (without HDD, 5.5 lb.)

Certification

• Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
