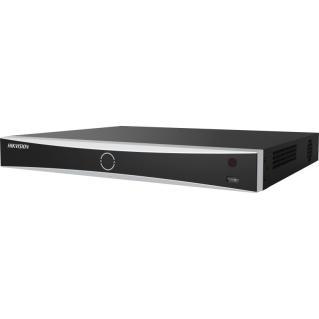

HIKVISION DS-7632NXI-I2/16P/VPro I/VPro Series NVR with AcuSeek

Video And Audio

• IP Video Input32
• Incoming Bandwidth384 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI/VGA independent output
• HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
• VGA Output1920 × 1080/60Hz, 1280 × 720/60Hz
• CVBS OutputNA
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265, H.265+, H.264, H.264+, MPEG4
• Recording Resolution32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/D CIF/2CIF/CIF/QCIF
• Synchronous playback16-ch Dual -Stream Recording Support
• Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio Aux Port Window Division 1/4/6/8/9/16/25/36
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3 af/at
• PoE Budget≤ 200W

Auxiliary Interface

• SATA2 SATA interfaces
• CapacityUp to 20 TB capacity for each disk Serial Interface NA
• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out4/1

General

• Power Supply≤ 280 W
• Consumption≤ 50W
• Working Temperature-10℃ ～＋55℃
• Working Humidity10％～90％ Chassis 1U
• Dimension (W × D × H)384 × 371 × 52 mm（15.12" × 12.48" × 2.03" ）
• Weight≤5 kg (without HDD, 11.02 lb.)

Certification

• CECE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4  Typical Application Typical Application
