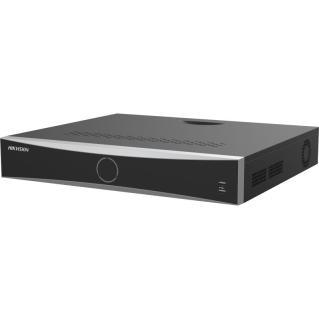

HIKVISION DS-7708NXI-K4/8P/VPro 8-ch 1.5U 8 POE AcuSeek K VPro NVR

HIKVISION DS-7708NXI-K4/8P/VPro 8-ch 1.5U 8 POE AcuSeek K VPro NVR

查詢價錢

8-ch 1.5U 8 POE AcuSeek K VPro NVR

  • Up to 8-ch AcuSeek and AcuSearch function
  • Adopt Hikvision AcuSense technology to minimize manual effort and security costs
  • Accurate perimeter protection effectively reduces false alarms
  • Automatic cameras connection and configuration
  • Up to 8-ch IP camera inputs, plug & play with 8 Power -over-Ethernet (PoE) interfaces
  • Up to 3-ch@12 MP or 6-ch@8 MP or 12-ch@4 MP or 24-ch@1080p decoding capacity
  • H.265/ H.265+/H.264/H.264+ video formats
  • Up to 80 Mbps incoming bandwidth

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
貨號: DS-7708NXI-K4-8P-VPro 分類: , ,

描述

DS-7708NXI-K4/8P/VPro

8-ch 1.5U 8 POE AcuSeek K VPro NVR

Specification

Video And Audio

  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth160 Mbps
  • IP Speaker Input4-ch
  • Video Output ModeHDMI/VGA independent output
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, , 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • CVBS OutputN/A
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding

  • Decoding FormatH.265, H.265+, H.264, H264+
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 8-ch
  • Decoding CapabilityAI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI
  • PoE Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE StandardIEEE 802.3af/at
  • PoE Budget≤ 150W

Auxiliary Interface

  • SATA4 SATA interfaces
  • CapacityUp to 16 TB capacity for each HDD Serial Interface 2 RS-485 (half -duplex), 1 RS-232
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/4

General

  • Power Supply200 to 240 VAC, 50 to 60Hz
  • Consumption≤ 50 W (without HDD)
  • Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)440 × 391 × 72 mm (17.32 × 15.39 × 2.81 inch)
  • Weight≤ 5 kg (without HDD, 11 lb.)

Certification

  • Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。 官方規格書 PDF
