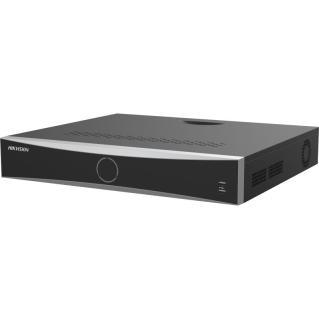

HIKVISION DS-7708NXI-K4/8P(E) 8-ch PoE 1.5U K Series AcuSense 4K NVR

Video And Audio

• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth160 Mbps
• IP Speaker Input4-ch
• Video Output ModeHDMI/VGA independent output
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding

• Decoding FormatH.265, H.265+, H.264, H264+
• Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1. Synchronous 8-ch Playback
• Decoding CapabilityAI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channe l 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 8-channel 3 MP@30fps, 8-channel 2 MP@30fps
• Stream TypeVideo,
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface1, RJ-45 10/100/1000 Mbps sel f-adaptive Ethernet interfaces
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
• PoE Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3af/at
• PoE Budget≤ 150W

Auxiliary Interface

• SATA4 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD Serial Interface 2 RS-485 (half -duplex), 1 RS-232 eSATA NA
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V NA DC 12V Support General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek
• Alarm In/Out16/4

General

• Power Supply100 to 240 VAC, 50 to 60Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)440 × 391 × 72 mm (17.32 × 15.39 × 2.82 inch)
• Weight≤ 5kg (without HDD, 10 lb.)

Certification

• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017 Obtained CE,CB,REACH,WEEE,UKCA,RCM,IC Certification  Function
