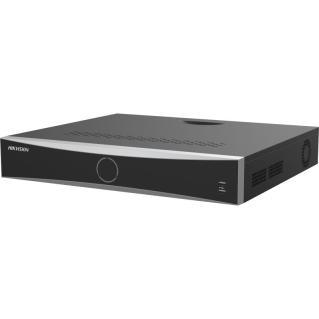

HIKVISION DS-7708NXI-K4/VPro 8-ch 1.5U AcuSeek K VPro NVR

Video And Audio

• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth160 Mbps
• IP Speaker Input4-ch
• Video Output ModeHDMI/VGA independ ent output
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, , 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )

Decoding

• Decoding FormatH.265, H.265+, H.264, H264+
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 8-ch
• Decoding CapabilityAI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI

Auxiliary Interface

• SATA4 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD Serial Interface 2 RS-485 (half -duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

General

• Power Supply200 to 240 VAC, 50 to 60Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)440 × 391 × 72 mm (17.32 × 15.39 × 2.82 inch)
• Weight≤ 5 kg (without HDD, 11 lb.)

Certification

• Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
