描述
海康威視 DS-7716NI-K4 是 16 路 1.5U 4K 網絡錄影機，接收及輸出頻寬各 160 Mbps，HDMI 最高 4K 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

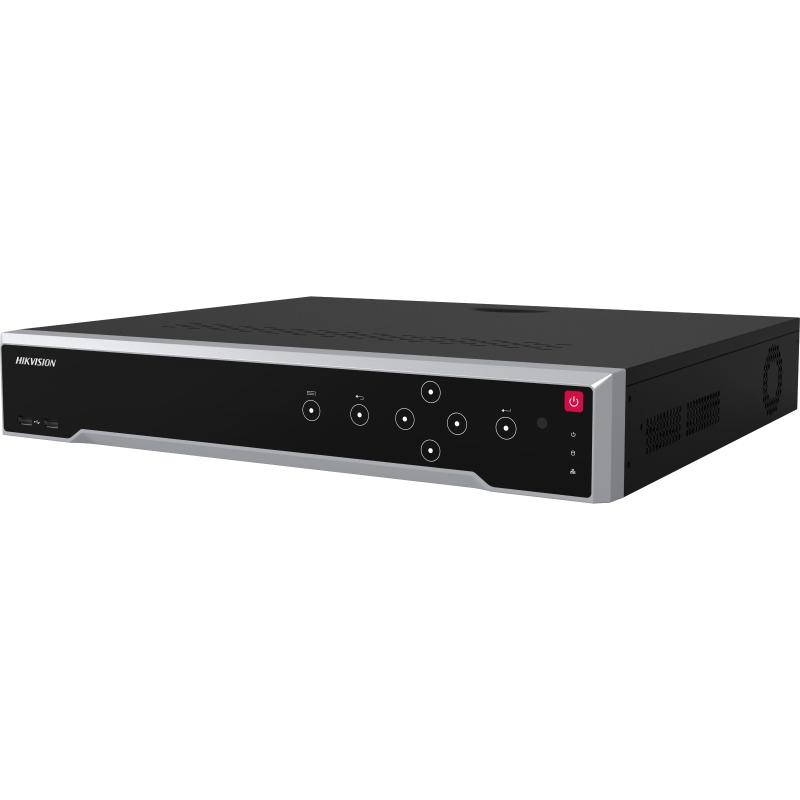

HIKVISION DS-7716NI-K4
16-ch 1.5U 4K NVR
Specification
Video And Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputN/A
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264/MPEG4
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p(30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Network
- Remote Connection128-ch
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Network ProtocolTCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Auxiliary Interface
- SATA4 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out16/4 (16/9 is optional)
- Ctrl 12VN/A (optional to support)
- DC 12VN/A (optional to support)
General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption≤ 20 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
- Weight≤ 5 kg (without HDD, 11 lb.)
Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
