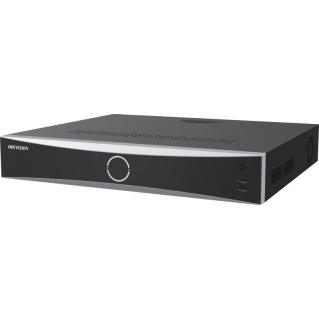

HIKVISION DS-7716NXI-I4/VPro I/VPro Series NVR with AcuSeek

Video And Audio

• IP Video Input16-ch
• Incoming Bandwidth192 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI/VGA independent output
• HDMI OutputHDMI1: 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz HDMI2: 1920 × 1080 / 60 Hz, 1280 × 720 / 60 Hz
• VGA Output1920 × 1080/60 Hz, 1280 × 720/60 Hz,
• CVBS OutputNA
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265+, H.265, H.264+, H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
• Synchronous playback16-ch
• Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps) Dual -Stream Recording Support
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Camera Access Protocol ONVIF(Version 2.5), RTSP
• Remote Connection128

Auxiliary Interface

• SATA4 SATA interfaces
• CapacityUp to 20 TB capacity for each disk
• USB InterfaceFront panel: 2× USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/9

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90% Chassis 1.5U chassis
• Dimension (W × D × H)440 x 391 x 72 mm （17.32" x 15.39" x 2.81" ）
• Weight≤5 kg (without HDD, 11.02 lb.)

Certification

• CECE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4  Typical Application Typical Application
