描述
海康威視 DS-7732NI-M4/24P 是 32 路 1.5U 24 PoE 8K 網絡錄影機，接收頻寬 320 Mbps，最高支援 32MP 網絡鏡頭，HDMI 1 最高 8K 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

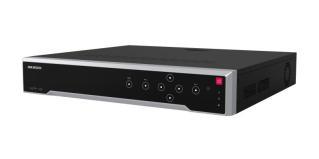

DS-7732NI-M4/24P
32-ch 1.5U 24 PoE 8K NVR
Specification
Video And Audio
- IP Video Input32-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080 /60Hz, 1280 × 720/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz
- VGA Output1920 × 1080/60Hz, 1280 × 720/60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs. Synchronous Playback 16-ch
- Decoding Capability2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);32-ch@2MP(30 fps) Dual -Stream Recording Support
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- Remote Connection128
- PoE Interface24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE StandardIEEE 802.3 af/at Auxiliary Interface e
- PoE Budget≤ 210 W
Auxiliary Interface
- SATA1 eSATA interface SATA 4 SATA interfaces
- CapacityUp to 16 TB capacity for each disk Serial Interface 2 RS-485 (half -duplex), 1 RS-232
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V 12 VDC, 1 A power output
- Alarm In/Out16/9
General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Working Humidity10% to 90% Chassis 19-inch rack -mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
- Weight≤ 5 kg (without HDD, 11 lb.) Certification FCC Part 15 Subpart B, ANSI C63.4 -2014
Certification
- Obtained CertificationCE、REACH、WEEE、FCC、CB、RCM、KC 、UL Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support : AES128 IEEE802.1X(EAP-TLS) Network Access Control Support Signed Firmware Support Others Digest authentication: Support User access log
- CEEN 55032:2015+A1:2020, ENIEC61000 -3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130 -4:2011+A1:2014, EN 55035:2017+A11:2020
