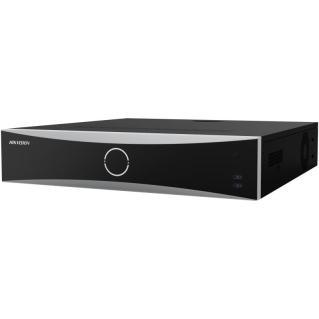

HIKVISION DS-8664NXI-I8/S 64-ch 2U 4K AcuSense NVR

Video And Audio

• IP Video Input64-ch
• Incoming Bandwidth384 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
• HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz HDMI 2 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/16MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. Synchronous Playback 16-ch
• Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) 1-ch@32 MP (30 fps); 1-ch@24 MP (30 fps); 2-ch@16MP (30 fps); 3-ch@12MP (30 fps);5-ch@8 MP (30 fps); 6-ch@6 MP (30 fps);8-ch@5 MP (30 fps);10-ch@4 MP (30 fps);20-ch@2 MP (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps) 2-ch@32 MP (30 fps); 2-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 5-ch@12MP (30 fps);8-ch@8 MP (30 fps); 8-ch@6 MP (30 fps); 12-ch@5 MP (30 fps);
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Camera Access Protocol ONVIF(Version 2.5), RTSP RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare Notes: RAID function an
• Remote Connection128

Auxiliary Interface

• SATA8 SATA interfaces
• CapacityUp to 16 TB capacity for each disk eSATA 1 eSATA interface
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuania n, Uzbek, Kazakh, Arabic,
• Alarm In/Out16/9

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 30 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90% Chassis 2U chassis
• Dimension (W × D × H)440 × 457 × 94 mm ( 17.4″× 18.0″ × 3.7″)
• Weight≤ 7.1 kg (without HDD, 15.7 lb.)

Certification

• CECE, CB, REACH, WEEE, UKCA, LOA CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4 Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support : AES128 IEEE802.1X(EAP-TLS) Network Access Control Support Signed Firmware Suppo
