描述
海康威視 DS-9632NI-M8/R 是 32 路 2U 8K 網絡錄影機（Ultra 系列），接收頻寬 320 Mbps，設兩組 HDMI 及 VGA 輸出，HDMI 1 最高 8K 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

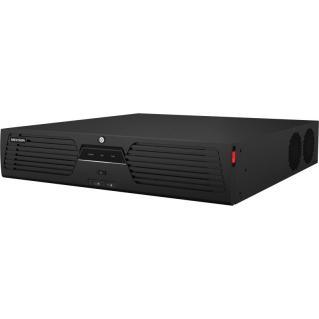

DS-9632NI-M8/R
32-ch 2U 8K NVR
Specification
Video And Audio
- IP Video Input32-ch
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the ma in output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
- HDMI 1 Output8K(7680×4320)/30Hz, 4K（3840×2160 ）/60Hz,4K（3840×2160 ）/30Hz ，2K（2560×1440 ） /60Hz，1080P （1920×1080 ）/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
- Synchronous playback16-ch
- Decoding Capability2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);32-ch@2 MP(30 fps) Audio Compress ion G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface 1 RS-485 (full -duplex), 1 RS-232
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Auxiliary Interface
- SATA8 SATA interfaces eSATA 1 eSATA interface
- CapacityUp to 16 TB capacity for each disk
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V 12 VDC, 1 A power output
- Alarm In/Out16/9
General
- Power Supply100 to 240 VAC, 50 to 60 Hz, redundant power supply
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Working Humidity10% to 90% Chassis 2U chassis
- Dimension (W × D × H)445 × 540 × 93 mm ( 17.5″× 21.3″ × 3.7″)
- Weight≤ 10 kg (without HDD, 22 lb.)
Certification
- CECE, FCC FCC Part 15 Subpart B, ANSI C63.4 -2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4 Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support IEEE802.1X(EAP-TLS) Network Access Control Support Signed Firmwa
