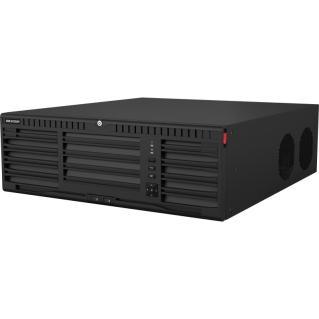

HIKVISION DS-9664NI-M16 64-ch 3U 8K NVR

Video And Audio

• IP Video Input64-ch
• Incoming Bandwidth400 Mbps
• Outgoing Bandwidth400 Mbps
• Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+
• Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback16-ch Smart & POS Function  Support multiple VCA (Video Content Analytics) events  Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting  POS information overlay on live view and playback, and POS triggered recording and alarm Network & Ethernet Access  2 self-adaptive 10/100/1000 Mbps Ethernet interface
• Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/ 10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface 1 RS-485 (full -duplex), 1 RS-232 SA TA 16 SA TA interfaces supporting hot-plug eSA TA 1 eSA TA interface
• Network ProtocolTCP/IP , DHCP , IPv4, IPv6, DNS, DDNS, NTP , RTSP , SADP , SMTP , SNMP , NFS, iSCSI, ISUP , UPnP™, HTTP , HTTPS

Auxiliary Interface

• CapacityUp to 16 TB capacity for each disk
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V 12 VDC, 1 A power output
• Alarm In/Out16/9

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 50 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90% Chassis 3U chassis
• Dimension (W × D × H)442 × 498 × 146 mm (17.4 ” × 19.6″ × 5.8″)
• Weight≤ 12.5 kg (without HDD, 27.6 lb.)

Certification

• CECE, FCC FCC Part 15 Subpart B, ANSI C63.4 -2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4 Dimension
