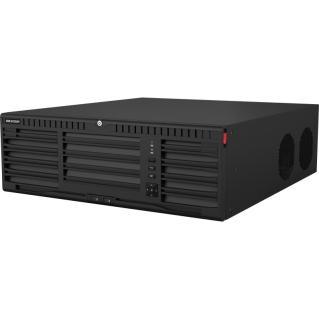

HIKVISION DS-9664NI-M16/R 64-ch 2U 8K NVR

查詢價錢

64-ch 2U 8K NVR

Up to 64-ch IP camera inputs
Up to 40 x 1080p@ 30fps decoding capacity
Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
Redundant power supply

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

持牌安裝（保安公司牌照 1507）

原廠行貨，原廠保用

全港免費上門勘察

描述

DS-9664NI-M16/R

64-ch 2U 8K NVR

IP Video Input64-ch
Incoming Bandwidth400 Mbps
Outgoing Bandwidth400 Mbps
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 prov ide simultaneous video output, and work as the auxiliary output
HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI 2 Output 4K (3840 × 2160)/6 0Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximu
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output2-ch, RCA (Linear, 1 KΩ)
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding FormatH.265/H.265+/H.264/H.264+
Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
Synchronous playback16-ch
Decoding Capability2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);40-ch@2 MP(30 fps)
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface 1 RS-485 (full -duplex), 1 RS-232
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

SATA16 SATA interfaces supporting hot -plug eSATA 1 eSATA interface
CapacityUp to 16 TB capacity for each disk
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V 12 VDC, 1 A power output
Alarm In/Out16/9

CECE, FCC FCC Part 15 Subpart B, ANSI C63.4 -2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4 Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support : AES128 IEEE802.1X(EAP-TLS) Network Access Control Support Sign

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。官方規格書 PDF
