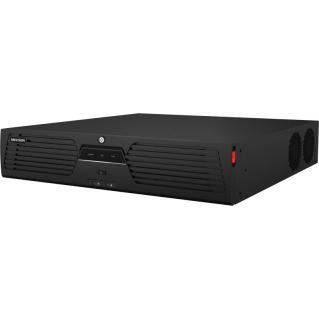

HIKVISION DS-9664NXI-I8/S 64-ch 2U 4K AcuSense NVR

Video And Audio

• IP Video Input64-ch Up to 32 MP resolution *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs.
• Incoming Bandwidth384 Mbps
• Outgoing Bandwidth256 Mbps
• Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
• HDMI 1 Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz HDMI 2 Output 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/16MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 4-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
• Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) 1-ch@32 MP (30 fps); 1-ch@24 MP (30 fps); 2-ch@16MP (30 fps); 3-ch@12MP (30 fps);5-ch@8 MP (30 fps); 6-ch@6 MP (30 fps);8-ch@5 MP (30 fps);10-ch@4 MP (30 fps);20-ch@2 MP (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps) 2-ch@32 MP (30 fps); 2-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 5-ch@12MP (30 fps);8-ch@8 MP (30 fps ); 10-ch@6 MP (30 fps); 12-ch@5 MP (30 fps
• Stream TypeVideo, Video & Audio Network API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128

Auxiliary Interface

• SATA8 SATA interfaces eSATA 1 eSATA interface
• CapacityUp to 16 TB capacity for each disk Serial Interface 1 RS-485 (full -duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
• Alarm In/Out16/9 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. DC 12V 12 VDC, 1 A power output General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanes

General

• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption≤ 30 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90% Chassis 2U chassis
• Dimension (W × D × H)445 × 460 × 93 mm (17.5″× 18.1″ × 3.7″)
• Weight≤ 8.3 kg (18.3lb.) Certification FCC N/A

Certification

• Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA Cyber Security EN 303645 Support Secure Boot Support Secure Component Verification SVC Support Password Protection Support IP & MAC Address Filtering Support HTTPS Encryption Support Live View & Playback Stream Encryption Support : AES128 IEEE802.1X(EAP-TLS) Network Access Control Support Signed Firmware Support Others Digest authentication: Support User access log :
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4
