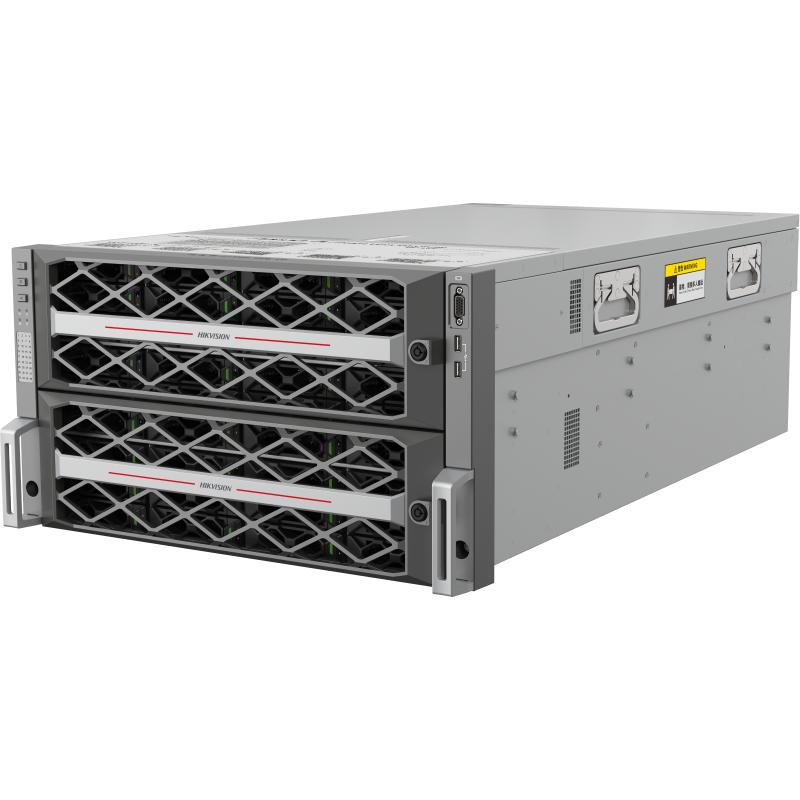

HIKVISION DS-A82172SI 821 Series Ultra CVR

描述

DS-A82172SI

821 Series Ultra CVR

DS-A82172SI 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

Performance Parameter

Video Direct Storage (Timed Recording)	Incoming: 1024-channel (bandwidth: 2048 Mbps) Outgoing: bandwidth: 2048 Mbps Playback: 200-channel (bandwidth: 400 Mbps)
Video Direct Storage (Event Recording)	Incoming: 200-channel (bandwidth: 400 Mbps) Outgoing: bandwidth: 2048 Mbps Playback: 200-channel (bandwidth: 400 Mbps)
Video Direct Storage (Recording Backup)	Incoming: 512-channel (bandwidth: 2048 Mbps) Outgoing: bandwidth: 2048 Mbps Playback: 200-channel (bandwidth: 400 Mbps)
Picture Direct Storage	Incoming: bandwidth: 2048 Mbps (512 images/s @ 500KB/image) Outgoing: bandwidth: 400 Mbps

Device Maintenance

Alarm Linkage	Sound, notifying surveillance center, sending email, recording linkage
Anomaly Alarm	Storage exception, network exception, power exception, temperature exception, fan malfunction
Log Downloading	Download on web page

Network

Network Protocol	HTTP; HTTPS; IPv4; SMTP; NTP; DHCP; DNS; SNMP; SADP
Interoperability	ONVIF (Profile S,T); ISAPI; SDK
Browser	Chrome; Firefox; Edge; Safari
Network Mode	Active-Backup; XOR Mode; 802.3ad; Self-Adaptive Load Balancing (Virtualized)

General Specification

Chassis	8U
Power Supply	200-240 VAC, 50/60Hz, 2 redundant power supplies(expandable to 4)
Power consumption	Working(all HDDs connected): ≤ 1540W(5255 BTU/hr) Working(without HDD): ≤ 605W(2064 BTU/hr) Rated: ≤ 1600W(5459 BTU/hr)
Fan	Intelligent speed regulation fan
Net Weight	58 kg (127.87 lb)
Gross Weight	86 kg (189.60 lb)
Dimension (W × H × D)	447 × 350 × 787 mm (17.6 × 13.78 × 30.96 in)
Working temperature	5 °C to 40 °C (+41 °F to +104 °F)
Working humidity	20% to 80%RH (non-condensing/frozen)
Storage temperature	-20 °C to 70 °C (-4 °F to +158 °F)
Storage humidity	5% to 90%RH (non-condensing/frozen)
Installation	Standard 19 inch rack
Language	English, Vietnamese, Thai, Turkish, Arabic, Spanish, Portuguese, Russian, Chinese
VMS Support	HCP, HCM
Snapshot	Supported
Rail	Provided as accessory
Certifications	CB,CE-EMC,CE-LVD,RCM,Transport Identification

System

Main Processor	64-bit multi-core processor
Operating System	LINUX FAROS
Operating Interface	Web
Controller	Single controller
Cache	16 GB by default (extendable to 128 GB)
System Disk	Supports hot-swappable system disks(RAID 1 is optional)

Failover

Failover	N+1

Video Protection

Backup	Recording Backup
Video Protection	ANR

Audio and Video

Access Channel	1024
Multi-Screen Display	Customized display, max 16-channel web live view
Third-Party Camera Access	ONVIF; RTSP

Compression Standard

Video Compression	H.265+; H.265; H.264+; H.264
Audio Compression	G.711ulaw; G.711alaw; G.722; G.726; AAC; MP2L2

Recording Playback

Multi-Channel Playback	Web playback, max 16-channel playback
Recording Management	Recording modes: continuous, event-based, motion detection. Supports locking key video
Playback Function	1. Play, pause, stop, fast forward, fast backward, reverse playback, single frame 2. Full screen, backup (clip/file), capture, digital zoom, audio on/off, aspect ratio, window split

Storage

RAID	RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60, RAID5(VRAID), RAID6(VRAID), Hot-Spare
Storage Pool	Video and Picture pool management
HDD slot	72
HDD Interface/Capacity	SATA/4 TB, 6 TB, 8 TB, 10 TB, 16 TB, 20 TB
HDD Hot-Swapping	Supported
HDD support	Enterprise Hard Disk
Disk Management	Disk inspection, smart alarm and repair

Port

HDMI	1 × Rear
VGA	1 × Front
COM	1 × RS-232 serial interface
USB	2 × USB 2.0 (Front) 2 × USB 3.0 (Rear)
Management Network Interface	1 × 1G Ethernet interface
Data Network Interface	8 × 2.5G Ethernet interface 2 × 10G Ethernet interface
IPMI	Supported
Network Port Extension	4 × GbE or 2 × GbE or 1 × GbE or 2 × 10GbE (optional)
Indicator	Hdd indicator, power indicator, location indicator, status indicator, network indicator, alarm indicator
