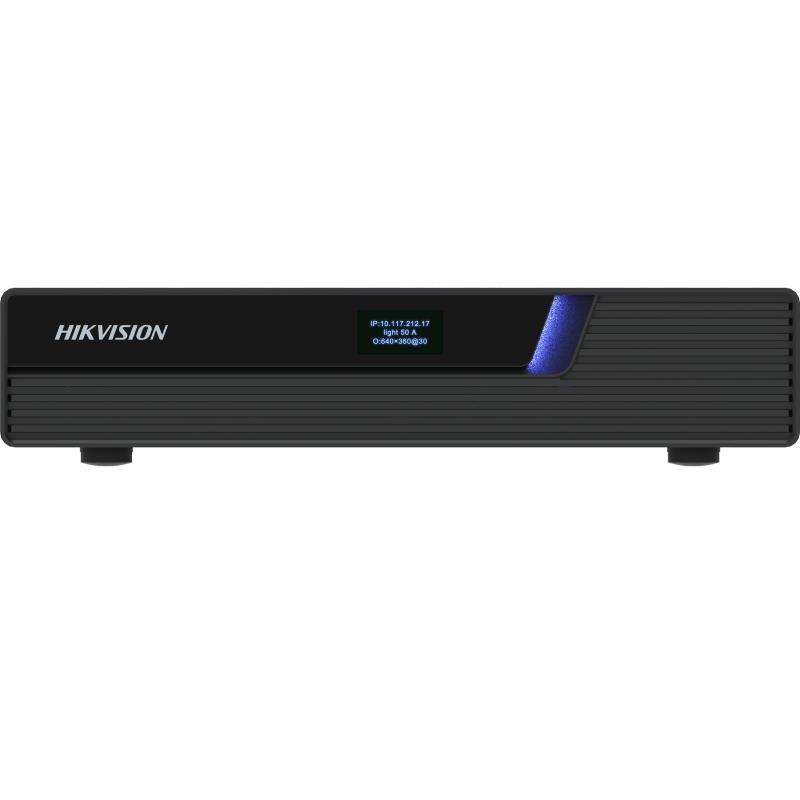

DS-C80K-01HI/4K
KVM 4K HDMI input Node
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Device Feature
- Device TypeInput node
- KVM FunctionYes
- Signal Source Live ViewSupported
- Interface
- Optical Interface1 channel of 1000 Mbps SFP port
- Electrical Interface1 channel of 1000 Mbps Ethernet port
- USB Interface3 × USB 2.0 port
- Screen TypeOLED 128 × 64 dot-matrix screen
- Other Interfaces1 × Console port for debugging
- RS-232 Interface1 channel, Phoenix terminal
- RS-485 Interface1 channel, Phoenix terminal
- IO/IR IN Interface1 channel, Phoenix terminal, customized by software
- IO/IR OUT Interface1 channel, Phoenix terminal, customized by software
- IR POWER Interface1 channel, 3.3 V, Phoenix terminal
- RELAY Interface1 channel, Phoenix terminal
- RESET Interface1 channel
- General
- Working Temperature0 °C to 50 °C
- Working Humidity0% to 95%
- Indicator1 × single double base color light indicator, 1 × optical port indicator, 1 × network port indicator
- Net Weight1.76 kg (3.88 lb.)
- Gross Weight2.7 kg (5.95 lb.)
- Dimensions (W × H × D)210 mm × 42 mm × 180 mm ( 8.27 inch × 1.65 inch × 7.09 inch)
- Installation MethodMagnetic installation (optional), planar arrangement, rack installation
- Packing List1 × DS-C80K-01HI/4K, 2 × USB cable, 1 × regulatory compliance and safety information manual, 1 × power cord, 1 × mounting bracket, 1 × connecting bracket
- Power Consumption≤ 30 W
- Power SupplyPower supply: 110 VAC to 240 VAC, 0.7 A POE: 802.3at protocol
- Video
- Video Input Interface TypeHDMI 2.0
- Video Input Interfaces1
- Max. Video Input Resolution4K60
- Image SamplingYUV 444
- Loop Output Interface1 channel of HDMI 2.0
- Video Input Resolution1024 × 768@60 Hz, 1280 × 720@60 Hz, 1280 × 1024@60 Hz, 1360 × 768@60 Hz, 1440 × 900@60 Hz, 1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@30 Hz, 3840 × 2160@60 Hz, 4096 × 2160@30 Hz, 4096 × 2160@60 Hz, custom resolution in the range of 1920 × 1080 to 4092 × 2160
- Audio
- Audio Input Interfaces1
- Audio Input Interface Type3.5 mm coaxial audio jack
- Audio ChannelDual audio channel
- Audio Output Interfaces1
- Audio Output Interface Type3.5 mm coaxial audio jack
- Audio TalkUse the audio input port and audio output port
- Audio Sampling Rate24 bit, 48 KHz
- Video Encoding
- Video Encoding FormatH.265 (default), H.264
- Video Encoding Channels1
- Video Encoding CapabilitySub-stream and main stream encoding; Sub-stream encoding contains: CIF(352 × 288), FCIF(704 × 576), 720p(1280 × 720) Main stream encoding contains: 720p(1280 × 720), XGA(1024 × 768), XVGA(1280 × 960), SXGA(1280 × 1024), WXGA(1360 × 768), WSXGA(1440 × 900), UXGA(1600 × 1200), 1080p(1920 × 1080), 1920 × 1200, 3840 × 2160, 4096 × 2160, custom resolution in the range of 1920 × 1080 to 4092 × 2160
- Input Logo OverlayNot supported
- Input OSDSupported, 2 OSDs
- Input Image ClippingNot supported
- Live View Channels6 simultaneous channels
- Audio Decoding
- Audio Decoding FormatG711A, G711U, G722.1, AAC_LC
- Audio Decoding Channels1
