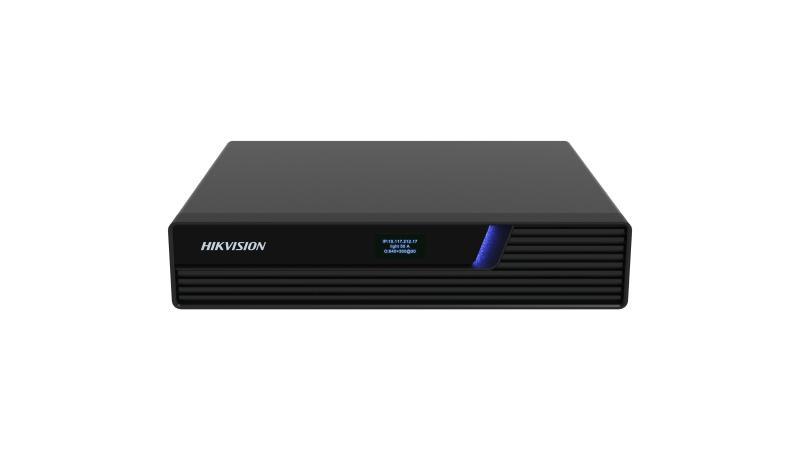

DS-C80K-01HO/4K
KVM 4K HDMI output Node
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Device Feature
- Device TypeOutput node
- KVM FunctionYes
- Interface
- Optical Interface1 channel of 1000 Mbps SFP port
- Electrical Interface1 channel of 1000 Mbps Ethernet port
- USB Interface4 × USB 2.0 port
- Screen TypeOLED 128 × 64 dot-matrix screen
- Other Interfaces1 × Console port for debugging
- RS-232 Interface1 channel, Phoenix terminal
- RS-485 Interface1 channel, Phoenix terminal
- IO/IR IN Interface1 channel, Phoenix terminal, customized by software
- IO/IR OUT Interface1 channel, Phoenix terminal, customized by software
- IR POWER Interface1 channel, 3.3 V, Phoenix terminal
- RELAY Interface1 channel, Phoenix terminal
- RESET Interface1 channel
- General
- Working Temperature0 °C to 50 °C
- Working Humidity0% to 95%
- Indicator1 × single double base color light indicator, 1 × optical port indicator, 1 × network port indicator
- Net Weight1.25 kg (2.76 lb.)
- Gross Weight1.67 kg (3.68 lb.)
- Dimensions (W × H × D)210 mm × 42 mm × 180 mm ( 8.27 inch × 1.65 inch × 7.09 inch)
- Installation MethodMagnetic installation (optional), planar arrangement, rack installation
- Packing List1 × DS-C80K-01HO/4K, 1 × regulatory compliance and safety information manual, 1 × power cord, 1 × mounting bracket, 1 × connecting bracket
- Power Consumption≤ 30 W
- Power SupplyPower supply: 110 VAC to 240 VAC, 0.7 A POE: 802.3at protocol
- Video
- Video Output Interface TypeHDMI 2.0
- Video Output Interfaces1
- Max. Video Output Resolution4K60
- Video Output Resolution1600 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1200@60 Hz, 3840 × 2160@60 Hz
- Audio
- Audio Input Interfaces1
- Audio Input Interface Type3.5 mm coaxial audio jack
- Audio ChannelDual audio channel
- Audio Output Interfaces1
- Audio Output Interface Type3.5 mm coaxial audio jack
- Audio TalkUse the audio input port and audio output port
- Audio Sampling Rate24 bit, 48 KHz
- Video Decoding
- Video Decoding FormatCustomized in program
- Video Decoding ChannelsCustomized in program
- Video Decoding CapabilityCustomized in program
- Audio Decoding
- Audio Decoding FormatG711A, G711U, G722, G722.1, AAC_LC
- Audio Decoding Channels1
- KVM Seat
- Seat Scale256 seat input nodes, 256 seat output nodes
- Window Division per Output Port1/4/6/8, or custom window division
- ScenesOne user can save 8 scenes.
- Seat Output MatrixSupports up to 3 × 5 scale and roaming control by one set of keyboard and mouse.
- Graphics Card Expansion1 × 1, 1 × 2, 1 × 3, 1 × 4
- Users≤ 500
