DS-D5022F2-6P2

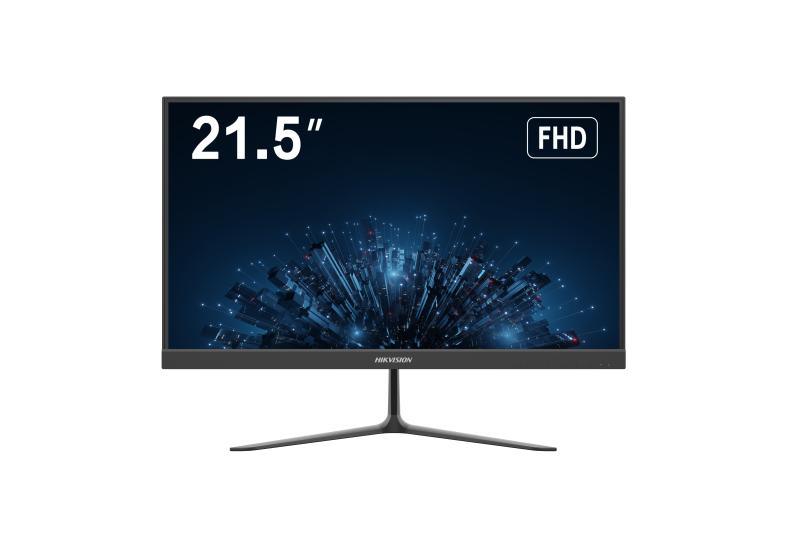

21.5 inch FHD 100Hz IPS Monitor
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Display
- Screen Size21.5 inch , 54.61 cm
- Active Display Area478.656 (H) mm × 260.280 (V) mm, 12.45 dm²
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.241 (H) mm × 0.241 (V) mm
- Brightness250 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit ,16.7 M
- Contrast Ratio1000 : 1
- Response Time8 ms
- Refresh Rate100 Hz
- HazeHaze 25%, 3H
- Reliability7 × 16H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1
- Video & Audio OutputAudio Out × 1
- Data Transmission InterfaceNA
- Control InterfaceNA
- Power
- Power SupplyDC 12V, 2.0A
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4 – M4 × 6 mm)
- Bezel Width2.38 mm (top/left/right), 21.55 mm (bottom)
- Product Dimensions (W × H × D)With base: 493.26 (W) mm × 369.12 (H) mm × 162.75(D) mm (19.42 (W) × 14.53 (H) × 6.41 (D)) inch Without base: 493.26(W) mm × 290.14 (H) mm × 42.68 (D) mm (19.42 (W) × 11.42 (H) × 1.68 (D)) inch
- Package Dimensions (W × H × D)598 (W) mm × 391 (H) mm × 106 (D) mm (23.54(W) × 15.39 (H) × 4.17 (D) ) inch
- Standby Time600s
- Net Weight2.0 ± 0.5 kg (4.4 ± 1.1 lb)
- Gross Weight3.2 ± 0.5 kg (7.1 ± 1.1 lb)
- Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
