描述
海康威視 DS-D5024F2-5V2 是 23.8 吋 FHD（1920 × 1080）VA 顯示屏，100 Hz 更新率，設 HDMI 及 VGA 輸入。香港防盜為安裝商及經銷商，規格以原廠為準。

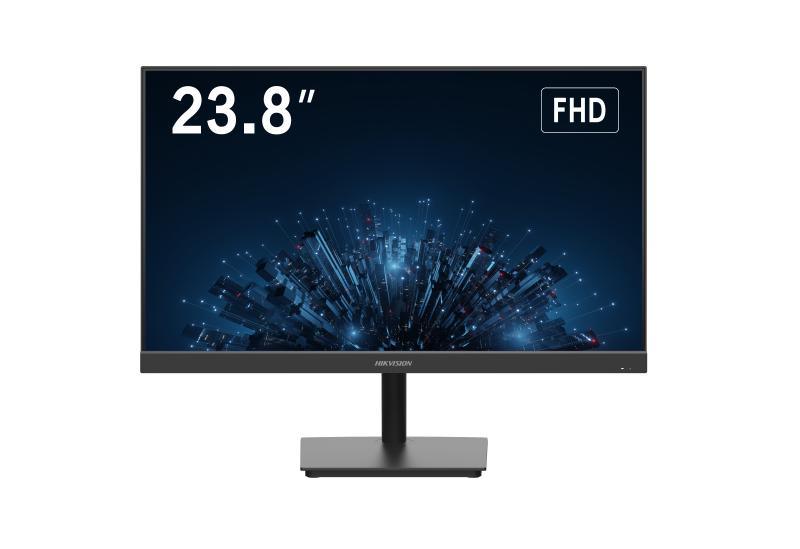

DS-D5024F2-5V2
23.8 inch FHD 100Hz VA Monitor
- Display
- Screen Size23.8 inch , 60.45 cm
- Active Display Area527.04 (H) mm × 296.46 (V) mm, 15.6 dm²
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.2745 mm (H) × 0.2745 mm (V)
- Brightness250 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit , 16.7 M
- Contrast Ratio4000 : 1
- Response Time7ms（typ）
- Refresh Rate100 Hz
- HazeHaze 25%
- Reliability7 × 16 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA x 1
- Video & Audio OutputAudio Out × 1
- Data Transmission InterfaceNone
- Control InterfaceNone
- Power
- Power SupplyDC 12 V, 2.0 A
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- SpeakerNone
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4-M4 × 6 mm)
- Bezel Width2mm（up/left/right), 23.55 mm（down）
- Product Dimensions (W × H × D)With base: 539.7 (W) mm × 427.82 (H) mm × 185.74 (D) mm 21.25 (W) inch × 16.84 (H) inch × 7.31 (D) inch Without base: 539.7 (W) mm × 327.33 (H) mm × 42.7 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.68 (D) inch
- Standby Time600s
- Package Dimensions (W × H × D)647 (W) mm ｘ 440 (H) mm ｘ 111 (D) mm 25.47 (W) ｘ 17.32 (H) ｘ 4.37 (D) inch
- Net Weight2.4 ± 0.5 kg (5.3 ± 1.1 lb)
- Gross Weight3.8 ± 0.5 kg (8.4 ± 1.1 lb)
- Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
