描述

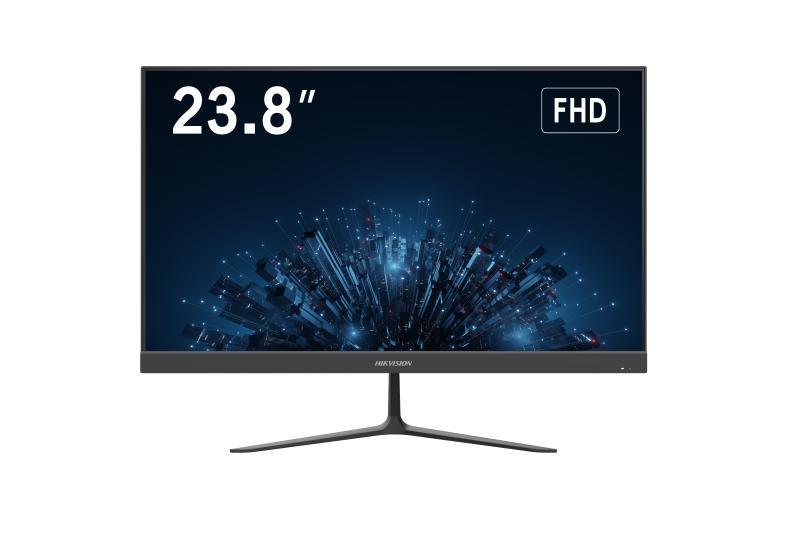

DS-D5024F3-2P3
DS-D5024F3-2P3(O-STD)(EU)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Display
- Screen Size23.8 inch
- Active Display Area527.04 mm (H) × 296.46 mm (V)
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.2745 mm (H) × 0.2745 mm (V)
- Brightness300 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit
- Contrast Ratio1500 : 1
- Response TimeGTG 7ms（typ）, MPRT 1ms
- Refresh Rate120 Hz
- HazeHaze 25% ，3 H
- Reliability7 × 24 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1
- Video & Audio OutputAudio Out × 1
- Data Transmission InterfaceNone
- Control InterfaceNone
- Power
- Power SupplyDC 12 V, 2.0 A
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity20% to 90% RH (Non-Condensing)
- Storage Temperature-20°C to 60°C (-4°F to 104°F)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- SpeakerNone
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4-M4 × 6 mm)
- Bezel Width2 mm（up/left/right），23.55 mm（down）
- Product Dimensions (W × H × D)Without base: 539.7 (W) mm × 327.33 (H) mm × 43.5 (D) mm 21.25 (W) inch × 12.89 (H) inch × 1.71 (D) inch With base: 539.7 (W) mm × 399.9 (H) mm × 164.72 (D) mm 21.25 (W) inch × 15.74 (H) inch × 6.49 (D) inch
- Package Dimensions (W × H × D)611 (W) mm ｘ 405 (H) mm ｘ 118 (D) mm 24.06 (W) inch ｘ 15.94 (H) inch ｘ 4.65(D) inch
- Net Weight2.47 ± 0.5 kg (5.45 ± 1.1 lb)
- Gross Weight3.80 ± 0.5 kg (8.38 ± 1.1 lb)
- Packing ListMonitor × 1, Base component × 1, Base Screws (Hex Socket) ×1, Hex Key ×1, Adapter (12V 2A) × 1, HDMI Cable (1.5m) × 1, User Manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
