DS-D5222F2-1V1S

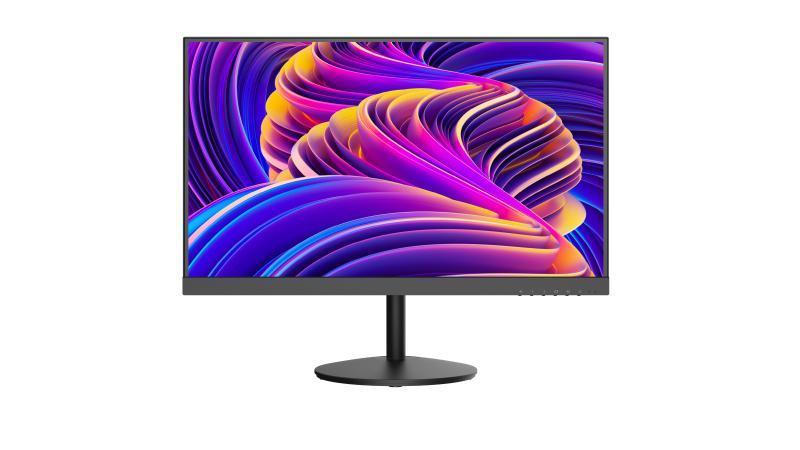

21.45 VA 75Hz Monitor
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Display
- Screen Size21.45 inch
- Active Display Area478.656 (H) mm × 260.280 (V) mm
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.241 mm (H) × 0.241 mm (V)
- Brightness250 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit ,16.7 M
- Contrast Ratio3000 : 1
- Response Time6.5 ms
- Refresh RateMax. 75Hz , Typ. 60 Hz
- HazeHaze 25%, 3H
- Reliability7 × 24 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1，CVBS× 1，AUDIO IN × 1
- Video & Audio OutputSpeaker (2W 8Ω) × 2
- Data Transmission InterfaceUSB 2.0 (support program upgrade and USB online playback) × 1
- Power
- Power SupplyAC 100-240V～, 50/60Hz, 0.5A Max
- Power Consumption≤ 25 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 80% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity5% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4 – M4 × 6 mm)
- Bezel Width1.89mm (top/left/right), 22.55 mm (bottom)
- Product Dimensions (W × H × D)without stand：492.36 (W) mm × 289.68 (H) mm × 41.88 (D) mm （19.38″ × 11.4″ × 1.65″ ） with stand：492.36 (W) mm × 403.93 (H) mm × 209.99(D) mm（19.38″ × 15.9″ × 8.27″ ）
- Package Dimensions (W × H × D)600 (W) mm × 400(H) mm × 115 (D) mm（23.62″ × 15.75″ × 4.53″ ）
- Net Weight2.65 ± 0.5 kg
- Gross Weight3.9 ± 0.5 kg
- Packing ListMonitor × 1, Base component × 1, AC power cable (1.5 m) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksThe base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
