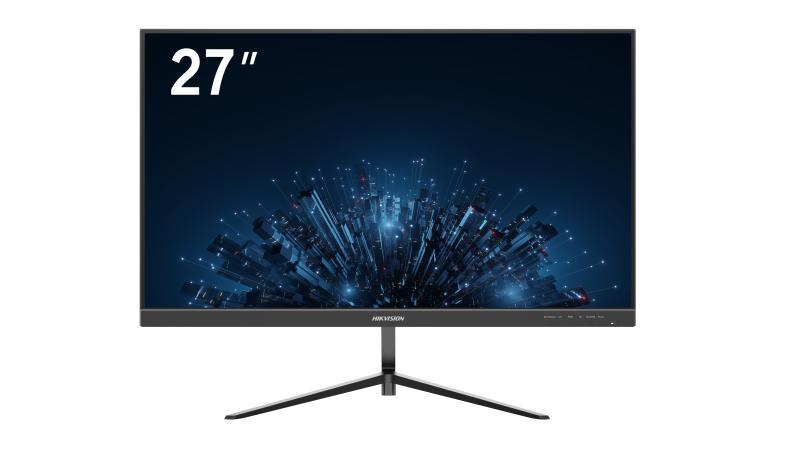

DS-D5227F3-1P0SV/D
DS-D5227F3-1P0SV/D(O-STD)
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Video Decoding
- Video Decoding FormatH.264，H.265，Smart264，Smart265，MJPEG
- Decoding ResolutionMax. 32 MP
- Video Decoding ChannelMax 16CH
- Video Decoding Capability1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time. 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time. 3) HIK264 format: Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time.
- Encrypted Stream Decoding ChannelMax 16CH
- Encrypted Stream Decoding Capability1) H.264/H.265 format: Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution @ 30 fps in real time. 2) MJPEG format: Supports decoding 4-channel of 1080p and lower resolution @ 25 fps in real time. 3) HIK264 format: Supports decoding 1-channel of 720p and lower resolution @ 25 fps in real time.
- Screen Split Quantity1,4,6,8,9,16
- Scene Quantity4
- Contingency Plan Quantity1
- Audio DecodingSupported
- Display
- Screen Size27 inch
- Active Display Area597.88 (H) mm x 336.31(V) mm
- Resolution1920 × 1080
- BacklightE-LED
- Pixel Pitch0.3114 (H) mm × 0.3114 (V) mm
- Brightness300 cd/㎡
- Viewing Angle178°(H)/178°(V)
- Color Depth8 bit
- Contrast Ratio1300 ：1
- Response Time14 ms（typ）
- Refresh Rate60Hz
- Surface TreatmentHaze 25% , 3H
- Reliability7 × 24 H
- Color Gamut72% NTSC
- Interface
- Video & Audio InputHDMI × 1, 1080X720@100Hz
- Video & Audio OutputAudio out × 1
- Data Transmission InterfaceUSB2.0 x 2
- Network Interface1 × 1000Base-T/100Base-TX/10Base-T adaptive Ethernet (RJ-45)
- Control InterfaceUART x 1
- Power
- Power SupplyDC 12V, 3A
- Power Consumption≤ 36 W
- Standby Consumption≤ 0.5 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity20% to 80% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 90% RH (Non-Condensing)
- General
- Casing MaterialPlastic
- VESA100mm × 100 mm（4-M4 ×10mm）
- Bezel Width3.15mm (top/left/right), 22.2 mm (bottom)
- Product Dimensions (W × H × D)With base: 613.54 (W) mm × 471.32 (H) mm × 193 (D) mm (24.15” × 18.56” × 7.6”) Without base: 613.54 (W) mm × 368.26 (H) mm × 47.56 (D) mm (24.15” × 14.5” × 1.87”)
- Package Dimensions (W × H × D)686(W) mm × 450 (H) mm × 128 (D) mm (27.01” × 17.72” × 5.04”)
- Net Weight3.39 ± 0.5 kg (7.47 ± 1.1 lb.)
- Gross Weight5.14 ± 0.5 kg (11.33 ± 1.1 lb.)
- Packing ListMonitor ×1, base assembly ×1, base screw (hex socket) ×1, hex wrench ×1, adapter (12V 3A) ×1, mouse (1.5m) ×1, HDMI cable (1.5m) ×1, user manual ×1, multilingual manual ×1
- SpeakerSpeaker × 2 (4Ω , 2W)
- Remarks*The base is included by default. *The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
