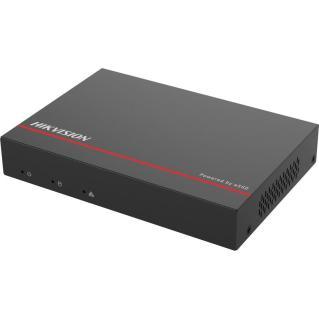

HIKVISION DS-E04NI-Q1/4P SSD NVR

Video And Audio

• IP Video Input4-ch
• Incoming Bandwidth40 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1920×1080/60Hz ，1600×1200/60Hz ，1280×1024/60Hz ，1280×720/60Hz

Decoding

• Decoding FormatH.265,Smart265,H.264,Smart264
• Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch
• Decoding Capability4-ch@1080p (25 fps)
• Stream TypeVideo,
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network

• Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128-ch
• PoE Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• PoE StandardIEEE 802.3 af/at
• PoE Budget≤ 36 W

Auxiliary Interface

• Capacity2TB SSD (pre-installed)
• USB InterfaceRear panel: 2 × USB 2.0

General

• Power Supply48VDC，1.04A
• Consumption≤ 10 W (with SSD)
• Working Temperature-10 ° C to 50 ° C (14 ° F to 122 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)160 ×112 ×27 mm (6.3″ × 4.4″ × 1.1″)
• Weight≤ 0.39 kg

Certification

• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017  Function Built-in SSD SSD design brings low power consumption Integrated storage design provides the plug -and-play device use Easy Installation Mini size design saves installation space Anti-vibration design and light weight satisfy more installation conditions Compression and Recording H.265+ compression effectively reduce
