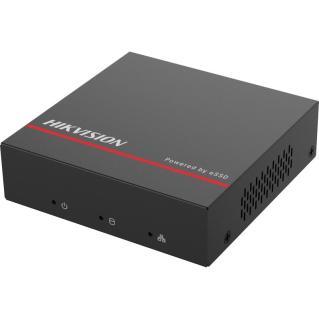

HIKVISION DS-E08NI-Q1 SSD NVR

Video And Audio

• IP Video Input8-ch
• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1920×1080/60Hz ，1600×1200/60Hz ，1280×1024/60Hz ，1280×720/60Hz

Decoding

• Decoding FormatH.265,Smart265,H.264,Smart264
• Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-ch
• Decoding Capability4-ch@1080p (25 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network

• Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection128-ch

Auxiliary Interface

• Capacity1TB SSD (pre -installed)
• USB InterfaceRear panel: 2 × USB 2.0

General

• Power Supply12 VDC, 1A
• Consumption≤ 10 W (with SSD)
• Working Temperature-10 ° C to 50 ° C (14 ° F to 122 ° F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)95 × 97 × 27 mm (3.7″ × 3.8″ × 1.1″)
• Weight≤ 0.24 kg

Certification

• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130 -4, EN 55035: 2017
