描述

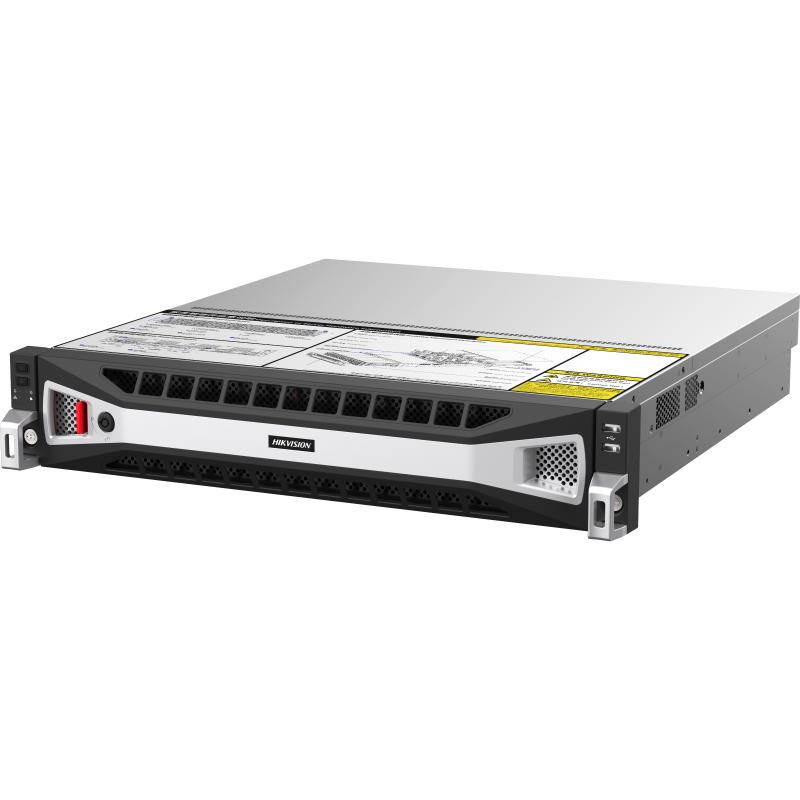

DS-IE2016-SU/BA-K2

Abnormal Event Analysis Server

DS-IE2016-SU/BA-K2 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。

規格

System

Operating System	ARM FAROS

AIOP

AIOP Picture Analysis Performance	1. AIOP Image Performance — Small Models: 1. Detection and Classification Mixed: a) ≤5 MP: 16 images/s/KT4 chip; b) >5 MP to 8 MP: 9 images/s/KT4; 2. Multi-attribute Classification: a) ≤5 MP: 16 images/s/KT4 chip; b) >5 MP to 8 MP: 12 images/s/KT4; 3. Dual Detection: a) ≤5 MP: 16 images/s/KT4 chip; b) >5 MP to 8 MP: 13 images/s/KT4; 2. AIOP Image Performance — Large Models: 1. Mixed Large Model: 2 MP–8 MP, 16 targets, 1 image/s/KT4 chip; 2. Dual Detection Large Model: 2 MP–8 MP, 4 targets, 0.6 image/s/KT4 chip. System Total Performance: 54 imgs/s
AIOP Video Analysis Performance	Performance Specifications (2MP – 5MP): Deteciton and classification Mixed: (1 detection + 1 classification): 40 channels of video analysis per device; Object Detection Mode: 40 channels of video analysis per device; Single-label Classification Mode: 40 channels of video analysis per device; Multi-attribute Classification Mode: 40 channels of video analysis per device; Performance Specifications (>5MP – 8MP): Deteciton and classification Mixed:(1 detection + 1 classification): 30 channels of video analysis per device; Object Detection Mode: 30 channels of video analysis per device; Single-label Classification Mode: 30 channels of video analysis per device; Multi-attribute Classification Mode: 30 channels of video analysis per device;
Number of AI Models	64
Scheduled Capture Analysis Performance	80-channel schedule snapshot.

Product Performance

Algorithm Type

Event detecting algorithms includes: (1) Indoor Event: Supports real-time detection for events such as climbing, working status (absence, sleeping), overtime loitering, sudden spikes in sound intensity, abnormal headcount, physical conflicts , standing detection, regional headcount, Using mobile phone, uniform compliance, falling down, and people counting. (2) Perimeter Protection: Provides real-time detection and alerts for line crossing, area intrusion, entering/exiting specific zones, and loitering. (3) Street Event: Supports real-time detection for running, physical conflicts, people gathering, and persons falling down. (4) Trend Event: Supports real-time detection for People Density Analysis,regional people counting,People Counting. (5) Multimodal Capabilities Supports multimodal secondary recognition for scenarios like sleeping with head covered, hands under blankets, and pointing/gesturing. (6) AI Open Platform Algorithms Delivers real-time detection and alerts for events based on detection, dual-detection, classification, and hybrid algorithms trained on the open platform.

Event Data Storage Capacity

4 TB, Event Image Storage (including AIOP event alarm and behavior capture images): 200,000 images (full coverage).Calculated based on the camera resolution and event image size.

Analysis Format

Picture Resolution	32 × 32 to 4096 × 4096 Picture format: JPEG (JPG), TIF, BMP, PNG, gif (static); Picture size: no more than 10 MB.
Video Frame Rate	H.264 video stream、H.265 video stream (HIKVISION),Resolution: 2 MP-8 MP(4096 × 2160); Frame rate: 12/s to 30/s;

Hardware Specifications

CPU	8 cores
GPU	2 GPU cards (6 chips), with 141 TOPS INT8 computing power and 48GB RAM per card.
Memory	8 GB DDR4 × 2
HDD	4 TB SATA pre-installed.
Network Interface	RJ45 10/100/1000Mbps Ethernet ports x4
HDD Interface	Supports up to 12 x 3.5-inch SATA HDDs

Auxiliary Interface

Serial Interface	1 RS-232, 2 RS-485 (half-duplex)
Alarm In/Out	8/4
USB Interface	2 × USB 2.0 (Front Panel) + 4 × USB 3.0 (Rear Panel)
VGA	1
HDMI	1
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Button	Power Button (front, integrated LED), UID Button (front, integrated LED), Reset Button (rear)
LED Indicators	Power (front, integrated with power button), Status, LAN, Alarm, HDD

General

Power Supply	AC 100V~240V，800W(1+1)
Consumption	≤700W (without HDD)
Working Temperature	-10℃～＋35℃
Working Humidity	10%~90%RH
Chassis	2U
Dimension (W × D × H)	448mm(W) x 470mm(D) x 87.1mm(H)
Package Dimension	655mm(W) x 595mm(D) x 260mm(H)
