描述
HIKVISION DS-K1102A E/M/EK/MK/K 是海康威視門禁卡機／獨立機，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格為準。

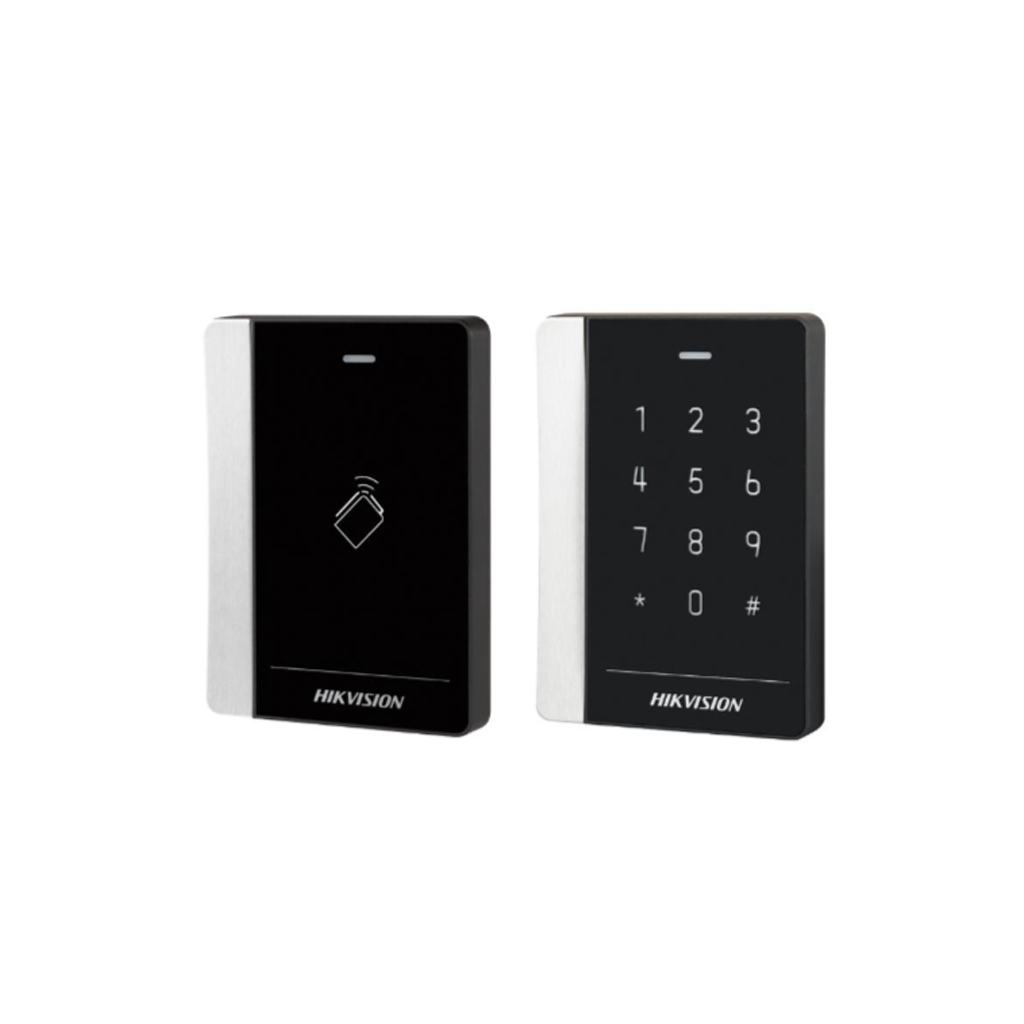

HIKVISION DS-K1102A E/M/EK/MK/K
K1100 Series Card Reader
Specification
| Reading Frequency | 125 KHz (For E Series)/13.56 MHz (For M Series) |
| Reading Range | EM Card: ≤ 100 mm (≤ 3.94″) M1 Card: ≤ 50 mm (≤ 1.97″) |
| Shell Material | PC + ABS |
| Communication Mode | RS485/Wiegand |
| ID Settings | Via DIP Switch |
| Audio Alert | Beeper |
| Power | 12 VDC |
| Power Consumption | ≤2 W |
| LED Indicator | Power Indicator; Status LED Indicator |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 10 % to 90 % (Non Condensing) |
| Protection Level | IP 54 |
| Dimensions (L×W×H) | 121 mm × 86.5 mm × 14 mm (4.76” × 3.41” × 0.55″) |
| Installing Method | Applied for 86/120 Gang Box |
