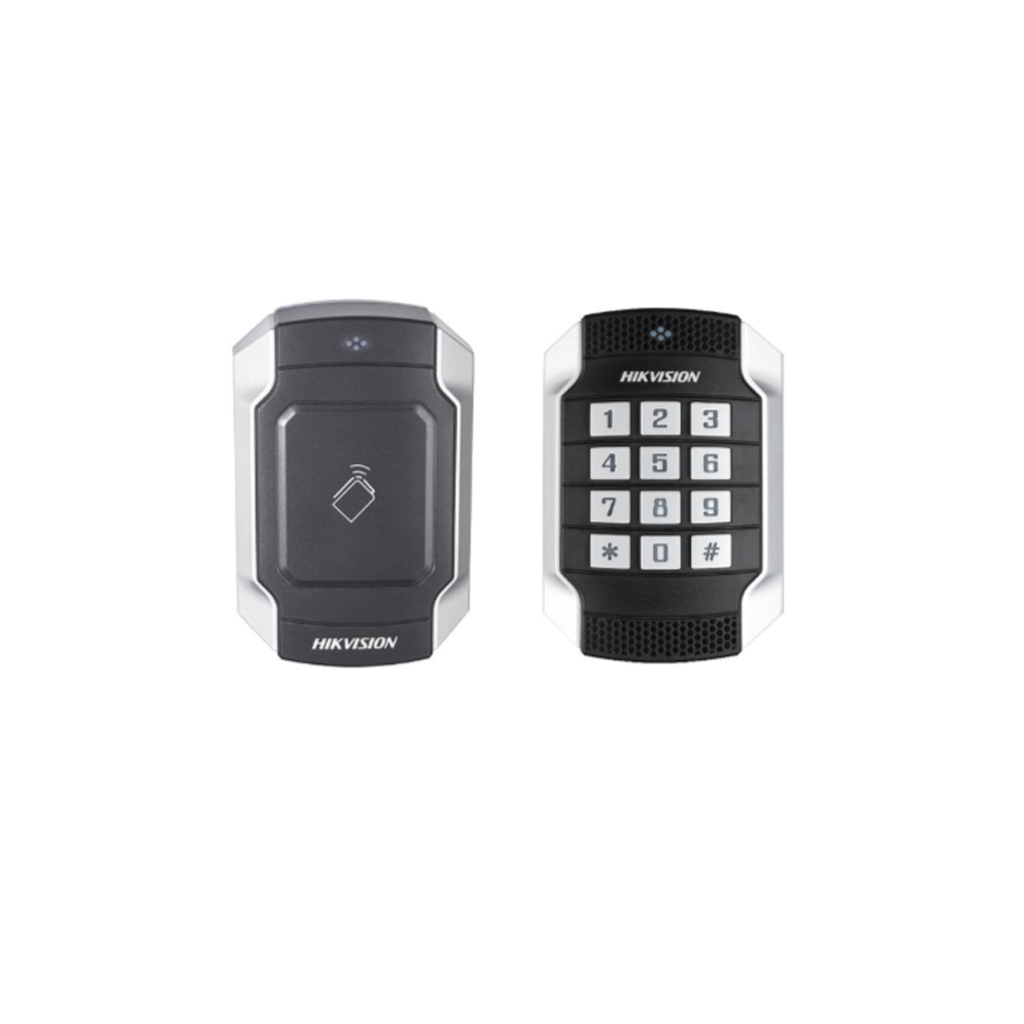

HIKVISION DS-K1104M/MK
K1100 Series Card Reader
Specification
| Reading Frequency | 13.56 MHz |
| Reading Range | ≤ 50 mm (≤ 1.97″) |
| Shell Material | PC & Zinc-Alloy |
| Communication Mode | RS485/Wiegand |
| ID Settings | Via DIP Switch |
| Audio Alert | Beeper |
| Power | 12 VDC |
| Power Consumption | ≤2 W |
| LED Indicator | Power Indicator; Status LED Indicator |
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 10 % to 90 % (Non Condensing) |
| Protection Level | IP 65 IK10 |
| Dimensions (L×W×H) | 118 mm × 70 mm × 23 mm (4.65″ × 2.99″ × 0.91″) |
| Installing Method | Applied for 86 & 120 Gang Box |
