描述
HIKVISION DS-K1801M/MK/E/EK 是海康威視門禁卡機／獨立機，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格為準。

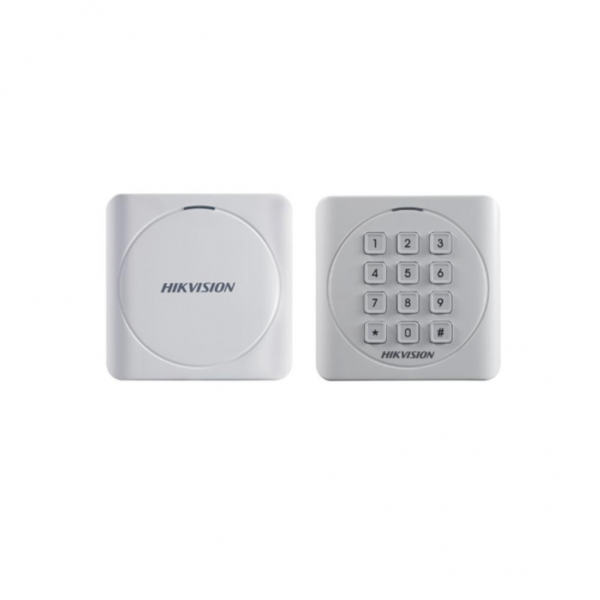

HIKVISION DS-K1801M/MK/E/EK
Wiegand Card Reader
Specification
| Reading Frequency | 125 KHz (For E Series)/13.56 MHz (For M Series) |
| Reading Range | EM Card: ≤ 100 mm (≤ 3.94″) M1 Card: ≤ 50 mm (≤ 1.97″) |
| Shell Material | PC + ABS |
| Communication Mode | Wiegand |
| Audio Alert | Beeper |
| Power | 12 VDC |
| Power Consumption | ≤1.6 W |
| LED Indicator | Power Indicator; Status LED Indicator |
| Operating Temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Operating Humidity | 10 % to 90 % (Non Condensing) |
| Protection Level | IP 65 |
| Dimensions (L×W×H) | 87 mm × 87 mm × 13.3 mm (3.43″ × 3.43″ × 0.52″) |
| Installing Method | Wall Mounting with Screws; 86 Gang Box |
