描述
HIKVISION DS-K1A8503EF-B 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

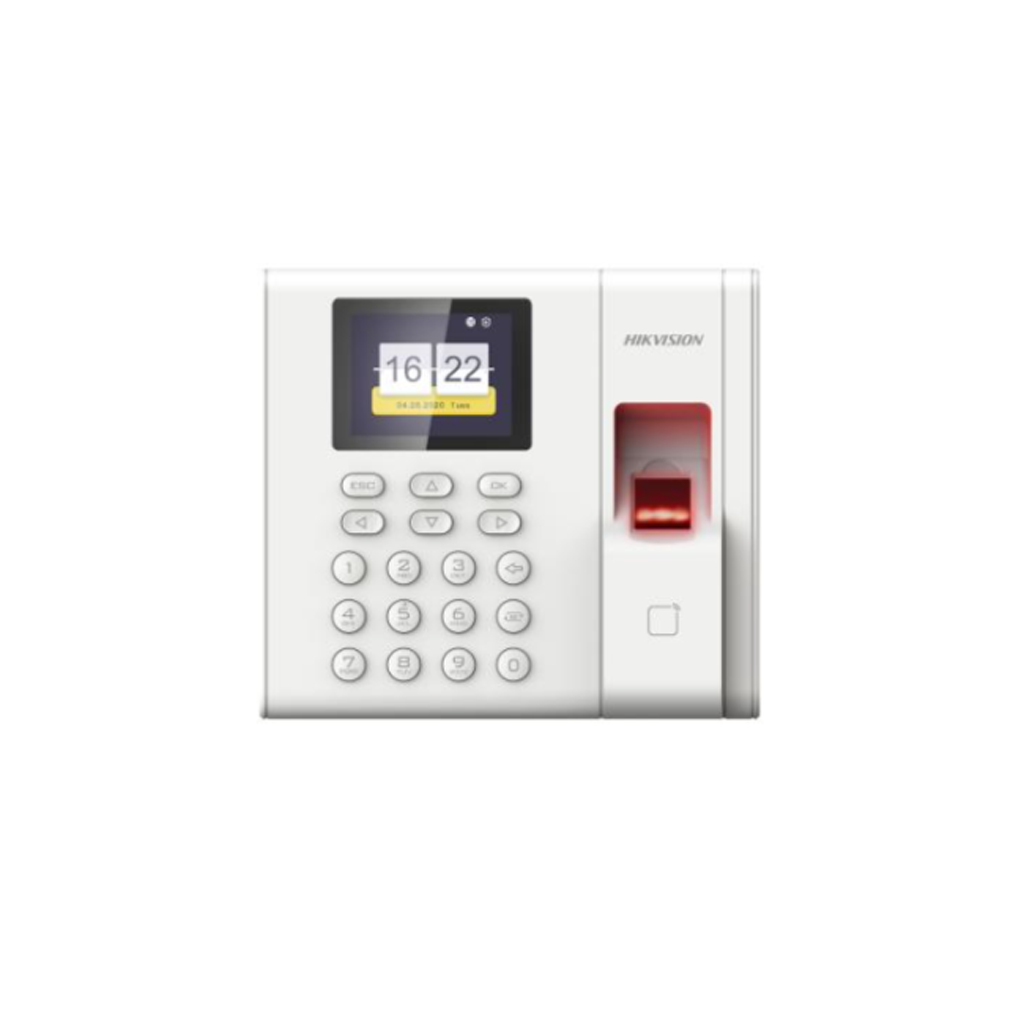

HIKVISION DS-K1A8503EF-B
Fingerprint Time Attendance Terminal
Features
2.4-inch LCD screen to display time, date, week, and attendance information
TCP/IP communication
1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
Max. 1000 users, Max. 1000 fingerprints, and Max. 100,000 events records
Stand-alone operation (supports adding persons, cards, and fingerprints locally)
Downloads attendance reports by USB flash drive
Up to 32 normal shifts, 32 man-hour shifts, and 32 attendance holiday schedules can be configured
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
Generates reports automatically
Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish,
Indonesian, and Ukrainian
Supports ISAPI protocol and ISUP 5.0 protocol
Specification
| System | |
| Operation system | Linux |
| Screen | |
| Size | 2.4-inch |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Interface | |
| Network interface | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 1000 |
| Fingerprint capacity | 1000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | EM card |
| Card reading distance | 0 to 3.5 cm |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1 s |
| Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
| Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
| Others | |
| Battery | Support |
| Power supply | 5 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | White |
| Dimensions | 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″) |
| Application environment | Indoor |
| Installation | Wall mounting |
