描述
HIKVISION DS-K1T321EFX 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

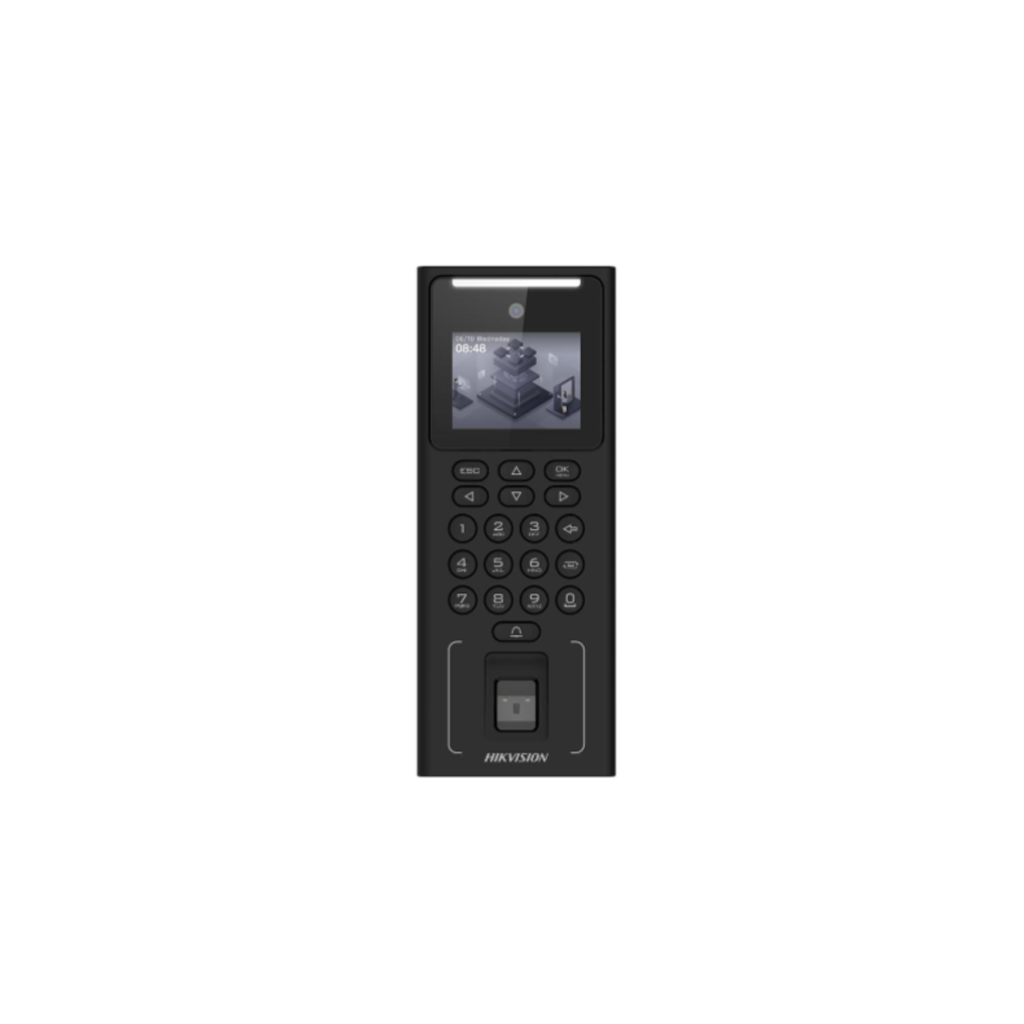

HIKVISION DS-K1T321EFX
Face Recognition Terminal
Features
2.4-inch LCD screen, 2 MP lens
Multiple authentication methods, including face, fingerprint, card (EM card), and PIN, etc.
Max. 500 faces, 3000 cards, 3000 fingerprints and 150,000 events
Face recognition duration ＜ 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the PC web client and mobile web client
Supports wiring with secure door control unit or card reader via RS-485
Specification
| Display | |
| Screen size | 2.4 inch |
| Type | LCD |
| Video | |
| Lens | 1 |
| Resolution | 2 MP (video stream: 720P) |
| FOV | HFOV = 25°; VFOV = 43° |
| Network | |
| Wired network | Support |
| Interface | |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| USB | 1 |
| Authentication | |
| Card type | EM card |
| General | |
| Power supply | 12 VDC |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0％ to 90％ (No condensing) |
| Function | |
| Face anti-spoofing | Support |
| Hik-Partner Pro | Support |
| Face recognition | Support |
