描述

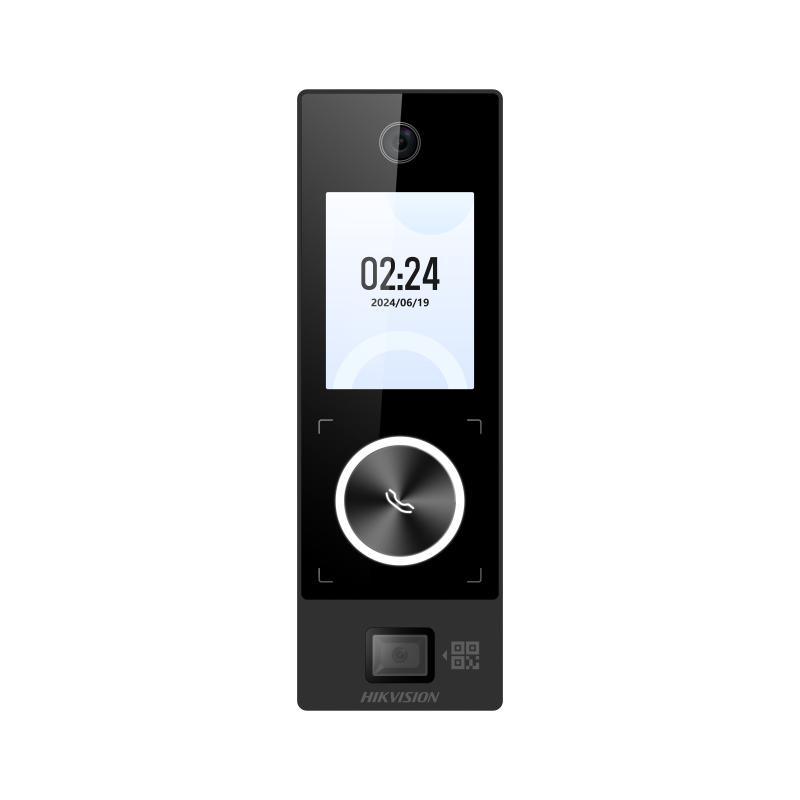

HIKVISION DS-K1T323MBWX-QRE1 Value Series Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。
DS-K1T323MBWX-QRE1
Value Series Face Access Terminal
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operating systemLinux
- Display
- Screen size2.4-inch
- Resolution240 × 320
- TypeTFT
- Operation methodNon touchable
- Video
- Resolution2MP (video stream:540P)
- Lens×1
- Video standardPAL (Default) and NTSC
- Network
- BluetoothSupport
- Wired network10/100 Mbps self adaptive
- Wi-FiSupport
- Interface
- PoEIEEE802.3at, standard PoE
- Network interface1
- Wiegand1, supports Wiegand input, single direction
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- Capacity
- User capacity1000
- Card capacity3000
- Face capacity1000
- Event capacity150000
- Authentication
- Card typeM1 card;M1 card content;CPU card No.
- Card reading frequency13.56 MHz
- Face recognition duration＜ 0.33 s
- Face recognition accuracy rate＞99%
- Face recognition distance0.3 to 1.5 m
- General
- Button1 physical call button
- Power supply12 VDC, 1 A, standard PoE
- Working temperature-30 °C to 65 °C (-22 °F to 149 °F)
- Working humidity0 % to 90 % (no condensing)
- Dimensions157 mm × 52 mm × 26 mm (6.18″ × 2.05″ × 1.02″)
- InstallationWall mounting
- Protective levelIP65
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese
- Net weight: 0.22 kg (0.49 lb) Rough weight: 0.6 kg (1.32 lb)
- Function
- QR code recognitionSupport scan QR code via QR code module
- Face anti-spoofingSupport
- Two-way audioSupport
- Audio promptSupport
