描述

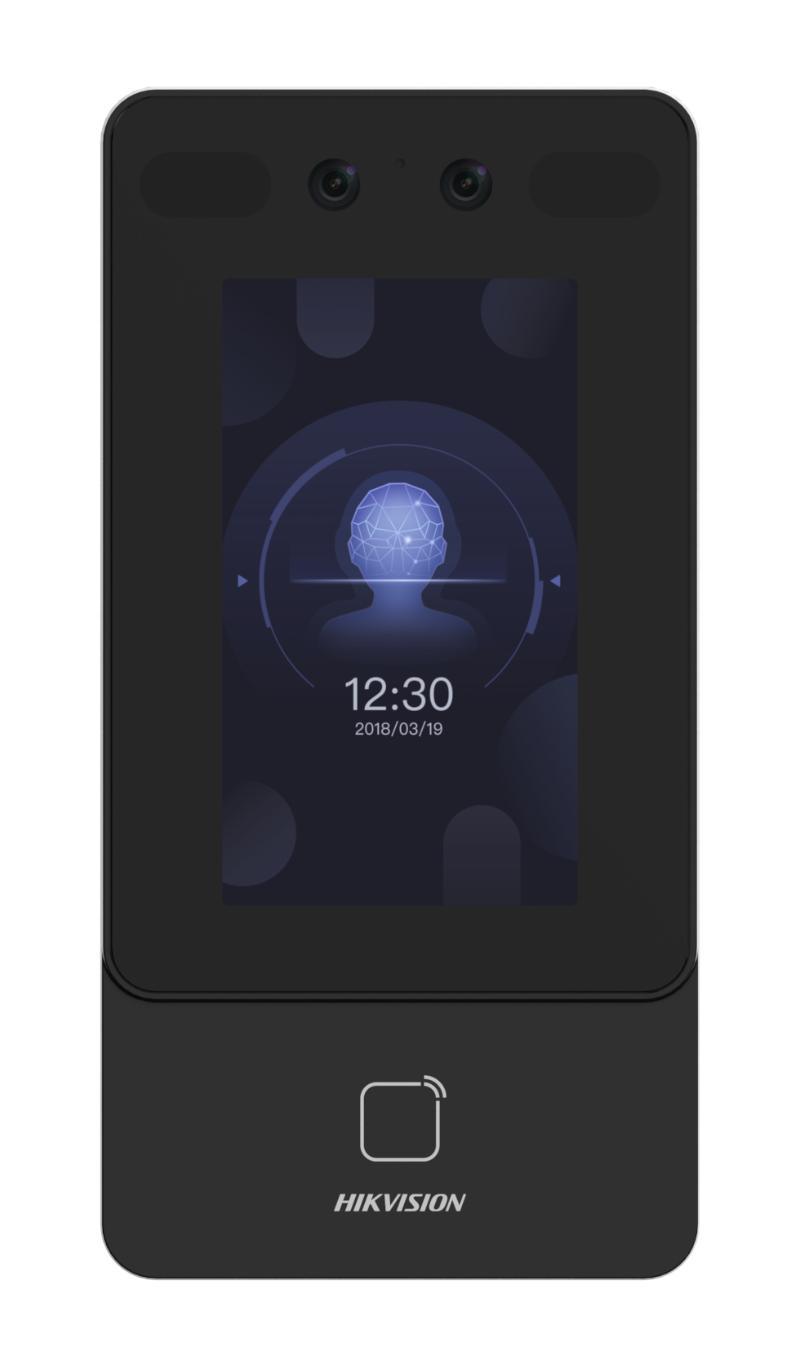

HIKVISION DS-K1T342MX-E1 Face Recognition Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。
DS-K1T342MX-E1
Face Recognition Terminal
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operation systemLinux
- Display
- Dimensions4.3-inch
- Resolution272 × 480
- TypeLCD
- Operation methodCapacitive touch screen
- Video
- Pixel2 MP
- Lens× 2
- Video standardPAL (Default) and NTSC
- Network
- Wired network10 M/100 M self-adaptive
- Interface
- PoEIEEE802.3at, standard PoE
- Network interface1
- RS-4851
- Wiegand1
- Lock output1
- Exit button1
- Door contact input1
- TAMPER1
- USB1
- Capacity
- Card capacity3,000
- Face capacity1,500
- Event capacity150,000
- Authentication
- Card typeM1 card
- Card reading frequency13.56 MHz
- Face recognition duration＜ 0.2 s
- Face recognition accuracy rate＞99%
- Face recognition distance0.3 to 1.5 m
- General
- Power supplyPower input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity0 to 90% (No condensing)
- Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″)
- InstallationWall Mounting
- Protective levelIP65
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek.
- Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
- Function
- Face anti-spoofingSupport
- Audio promptSupport
- Time synchronizationSupport
