描述
HIKVISION DS-K1T342MX 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

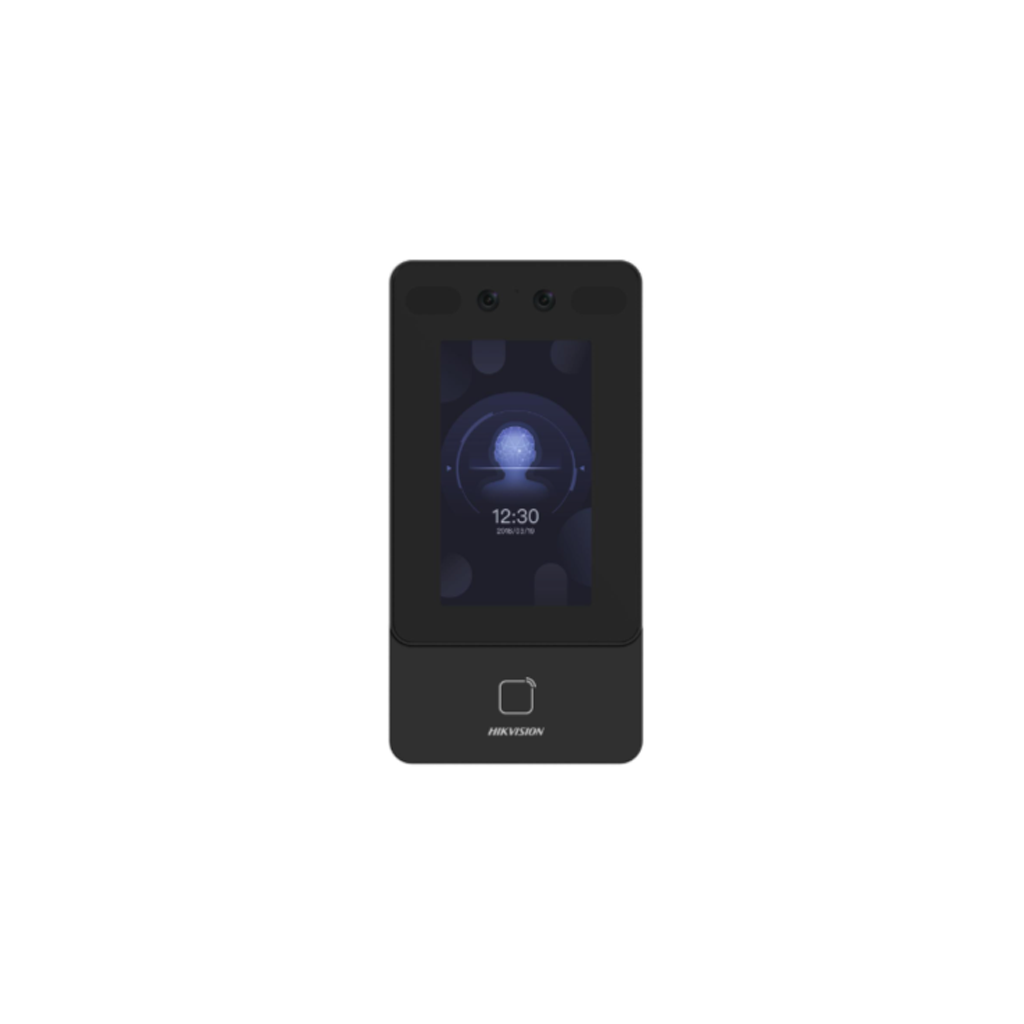

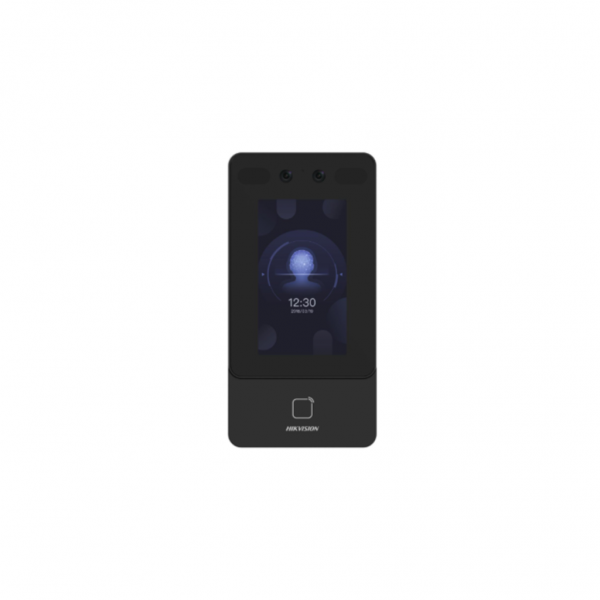

HIKVISION DS-K1T342MX
Face Recognition Terminal
Features
Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration＜0.2 s/User
Accuracy rate ≥ 99%
Supports mask recognition
Specification
| Display | |
| Screen size | 4.3 inch |
| Operation method | Capacitive touch screen |
| Type | LCD |
| Video | |
| Lens | × 2 |
| Resolution | 2 MP |
| FOV | HFOV = 75.5°; VFOV = 41.5°; DFOV = 87° |
| Audio | |
| Audio quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Interface | |
| Network interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card type | M1 card |
| Card reading frequency | 13.56 MHz |
| General | |
| Power supply | 12 VDC, 1 A (power adapter included) |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″) |
| Installation | Wall mounting |
| Weight | Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb) |
| Platform | Hik-ProConnect and HikCentral Professional |
| Function | |
| Face anti-spoofing | Support |
