描述
HIKVISION DS-K1T344MFX-E1 Value Series Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

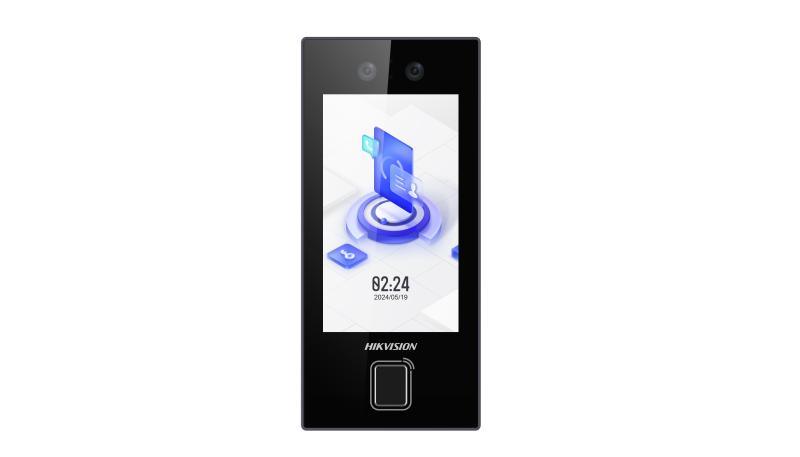

DS-K1T344MFX-E1
Value Series Face Access Terminal
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System
- Operating systemLinux
- Display
- Screen size4.5-inch
- Resolution480 × 854
- TypeLCD
- Operation methodTouchable
- Video
- Lens× 2
- Video standardPAL (Default) and NTSC
- Network
- Wired network10/100 Mbps self adaptive
- Wi-FiNot support
- Interface
- Alarm input2
- Alarm output1
- PoEIEEE802.3at, standard PoE
- Network interface1
- RS-4851
- Wiegand1, supports Wiegand input, single direction
- Lock control1
- Exit button1
- Door contact input1
- TAMPER1
- USB1
- Capacity
- User capacity3000
- Card capacity3000
- Face capacity3000
- Fingerprint capacity3000
- Event capacity150000
- Authentication
- Card typeM1 card
- Card reading frequency13.56 MHz
- Face recognition duration＜ 0.2 s
- Face recognition accuracy rate＞99%
- Face recognition distance0.3 to 1.5 m
- General
- ButtonNo physical call button
- Power supply12 VDC, 1 A, standard PoE
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10 to 90% (No condensing)
- Dimensions165.2 mm × 75.7 mm × 25 mm (6.5″ × 2.98″ × 0.98″)
- InstallationWall mounting
- Protective levelIP65
- LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
- Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
- Function
- QR code recognitionSupport scan QR code via camera
- Face anti-spoofingSupport
- Two-way audioSupport
- Audio promptSupport
- Time synchronizationSupport
