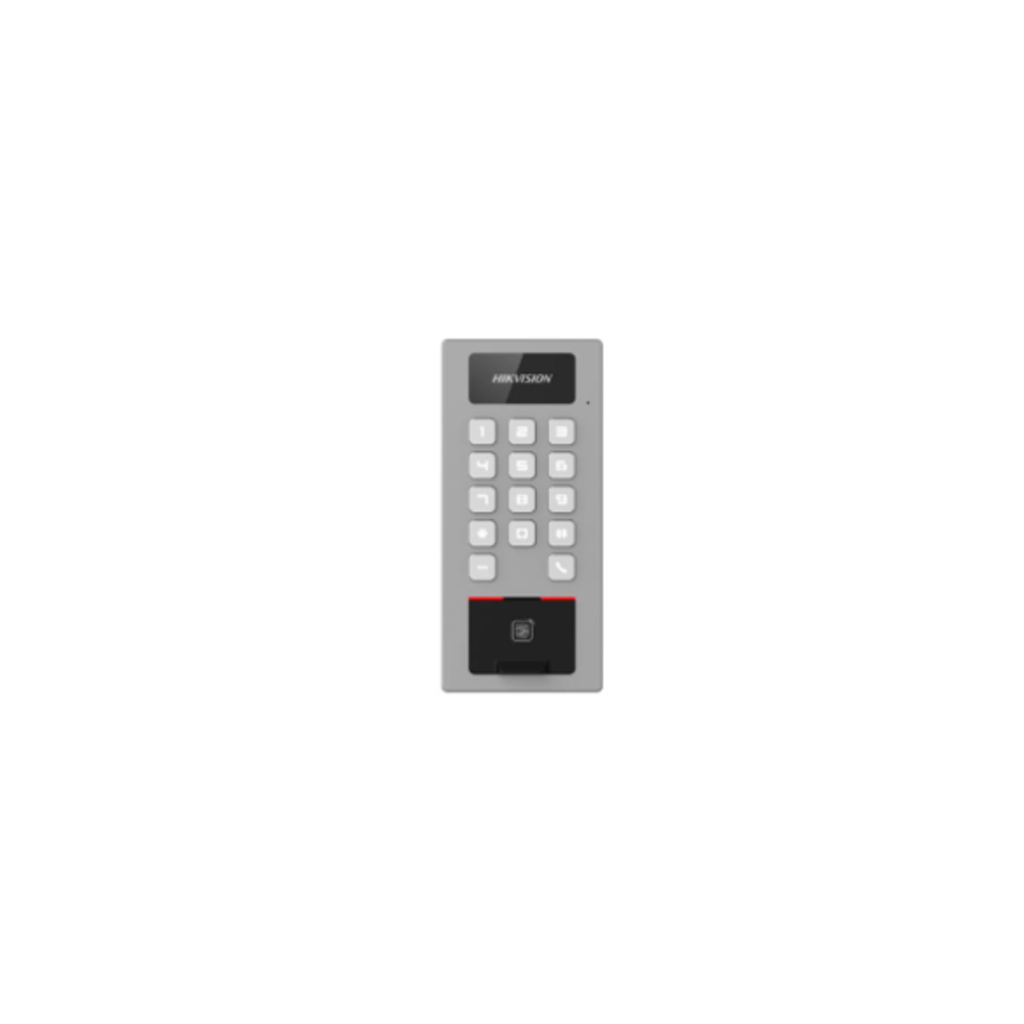

HIKVISION DS-K1T502DBFWX
Access Control Terminal
Features
Manage access control and intercom functions in one device
IP65 ＆ IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, fingerprint, PIN, etc.)
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Supports commiunication with smart phones via bluetooth to open the door
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports up to 256 GB SD card memory
Supports PIN settings under platform mode and local mode
Setting the priority of wired network and wireless network is available
Specification
| System | |
| Operating system | Linux |
| ROM | 4 GB |
| RAM | 256 MB |
| CPU | 960 MHz |
| Video | |
| Video compression standard | H.264 and H.265 |
| Audio | |
| Audio input | Build-in omnidirectional microphone |
| Audio output | Build-in loudspeaker |
| Volume adjustment | Adjust via web or client |
| Network | |
| Network protocol | IPV4: SADP, SIP 2.0, SIP, RTSP, ISAPI (80\443 Interface), ISAPI, ISUP 5.0; IPV6: SADP, SIP, RTSP, ISAPI (80\443 Interface), ISAPI |
| Wired network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Bluetooth | BT 2.1/4.2 |
| Interface | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 1 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| Wiegand | 1, Wiegand (Hik 26bit,Hik 34bit) |
| Capacity | |
| Fingerprint capacity | 10,000 |
| Card capacity | 100,000 |
| Event capacity | 300,000 |
| Authentication | |
| Fingerprint module | Capacitive fingerprint recognition |
| Card type | M1 card,DESfire card |
| Card reading distance | 0 to 3 cm |
| Card reading duration | ＜ 1 s |
| General | |
| Built-in access controller | Yes |
| Power supply | 12 VDC to 24 VDC/1 A |
| Power consumption | ≤ 12 W |
| Working temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Protective level | IK09, IP65 |
| Function | |
| Hik-Connect | Support |
| Two-way audio | Support |
| Multi-factor authentication | Support |
