描述
HIKVISION DS-K1T671 Pro Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

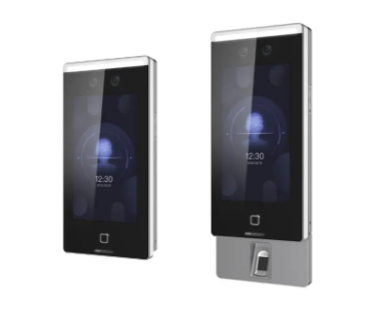

Pro Face Access Terminal
- 7-inch touch screen, 2 Mega pixel wide-angle lens
- Adjusts supplement light brightness manually
- Face recognition in dark environment
- Face recognition distance: 0.3m to 3m
- Suggested height for face recognition between 1.4 m and 1.9 m
- Deep learning algorithm
- 6,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
- Face anti-spoofing
- Multiple authentication modes
- Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
- Stand-alone operation
- Transmits data to the client software via TCP/IP communication and saves the data on the client software
- Capture linkage and captured pictures saving
- Manage, search and set device data after logging in the device locally
- Connects to one external card reader or access controller via RS-485 protocol
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Two-way audio with client software, indoor station, and master station
- Remote live view via RTSP protocol; encoding mode: H.264
- NTP, manually time synchronization, and auto synchronization
- Audio prompt
- Watchdog design and tamper function
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, and Russian
- Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
- Configuration via web browser
Specification
Display
- Dimensions : 7-inch
- Type : LCD
- Operation Method : Capacitive touch screen
Video
- FOV : HFOV= 46°；VFOV=87°
- Pixel : 2 MP
- Lens : 2
Audio
- Tone Quality : Noise suppression and echo cancellation
Network
- Wired Network : 10 M/100 M/1000 M self-adaptive
Interface
- Network Interface : 1
- Lock Output : 1
- Exit Button : 1
- Door Contact Input : 1
- Power Interface : 2-pin
Authentication
- Card Type : M1 card
- Card Reading Frequency : 13.56MHz
General
- Power Supply Method : 2-pin connecter
- Working Temperature : -30 ℃ to 60 ℃(-22 °F to 140 °F)
- Working Humidity : 0~90％ (No condensing)
- Dimensions : 290 mm × 116.5 mm × 33 mm (11.4″ × 4.6″ × 1.3″)
- Protective Level : IP65
- Installation : Surface
Function
- QR Code Recognition : Support
- Face Anti-Spoofing : Support
- Audio Prompt : Support
- Time Synchronization : Support
