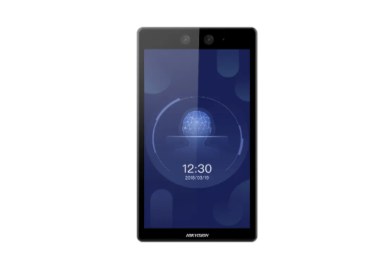

Ultra Series Wall-Mounted Face Access Terminal
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- 7-inch touch screen with bezel-less design
- Presents card on the screen to authenticate card permission
- Face recognition distance: 0.3 m to 3 m
- 50,000 face capacity, 50,000 card capacity, and 50,000 event capacity
- Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
- Connects to one external card reader via RS-485 protocol
- Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
- Connects to external access controller or Wiegand card reader via Wiegand protocol
- Two-way audio with indoor station and master station
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Configuration via the web client
- Remotely opens door and starts live view via Hik-Connect
- Supports ISAPI and EHome 5.0 protocol
- Supports multiple languages: English, Thai, Russian, Spanish, Arabic, Indonesian, and Vietnamese
- Self-defined voice prompt of authentication result
Specification
Display
- Dimensions : 7-inch
- Type : LCD
- Operation Method : Capacitive touch screen
Video
- Pixel : 2 MP
- Lens : × 2 (Visible light lens × 1,850nm Infrared lens × 1)
Audio
- Tone Quality : Noise Suppression and Echo Cancellation
Network
- Wired Network : 10 M/100 M/1000 M self-adaptive
Interface
- Network Interface : 1
- Lock Output : 1
- Exit Button : 1
- Door Contact Input : 1
- Power Interface : 2-pin
Authentication
- Card Type : M1 card
- Card Reading Frequency : 13.56MHz
General
- Button : Touch screen
- Power Supply Method : 12 VDC Power Adapter
- Working Temperature : -10 °C to 50 °C (-58 °F to 122 °F)
- Working Humidity : 0 to 90% (No condensing)
- Dimensions : 185.8 × 103.36 × 20.7mm (7.31” × 4.07” × 0.81” )
- Application Environment : Indoor
- Installation : Surface mounting
Function
- QR Code Recognition : Support
- Face Anti-Spoofing : Support
- Audio Prompt : Support
- Time Synchronization : Support
