描述

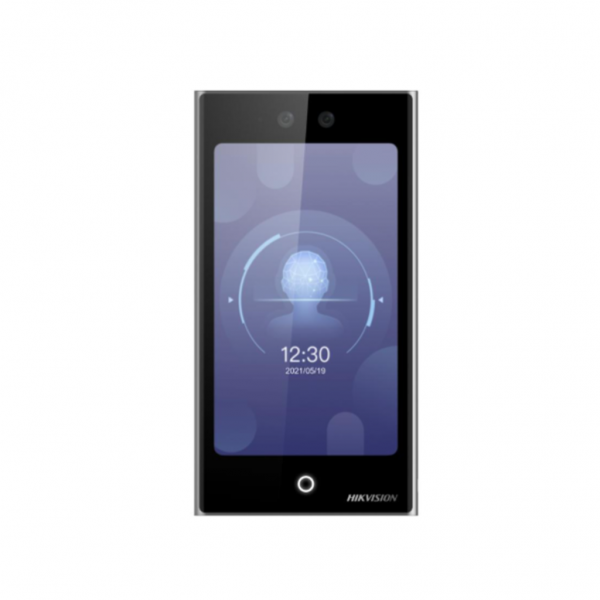

Pro Face Access Terminal
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in Mifare card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specification
System
- Operation System : Linux
Display
- Size : 7-inch
- Type : Touch screen
Video
- FOV : HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
- Pixel : 2 MP
- Lens : Dual-lens
- Video Standard : PAL (Default)/NTSC
Network
- Wired Network : Support 10/100/1000 Mbps self-adaptive
Interface
- Alarm Input : 1
- Alarm Output : 1
- USB : 1 (For Module)
- Audio Output Interface : 1 (3.5 mm)
- Network Interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock Output : 1
- Exit Button : 1
- Door Contact Input : 1
- TAMPER : 1
Capacity
- Card Capacity : 50,000
- Face Capacity : 10,000
- Event Capacity : 150,000
Authentication
- Face Recognition Accuracy Rate : ≥ 99%
- Card Type : Mifare 1 card, DESfire card, Felica card
- Card Reading Distance : 0 to 3 cm
- Card Reading Duration : ＜ 1 s
- Face Recognition Duration : ＜ 0.2 s per person
- Face Recognition Distance : 0.3 to 3 m
General
- Power Supply : 12 VDC to 24 VDC/2 A
- Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity : 0 to 90% (no condensing)
- Protective Level : IP65
- Dimensions : 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
- Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
- Weight
Gross Weight：1.06 kg (2.34 lb)
Net Weight：0.57 kg (1.26 lb)
Face Recognition Terminal/Capacity
- Fingerprint Capacity : 10,000 (With fingerprint module)
Function
- Two-Way Audio : Support
- Time Synchronization : Support
- Face Anti-Spoofing : Support
- Live View : Support
- Audio Prompt : Support
