描述
HIKVISION DS-K1T673TDWX 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

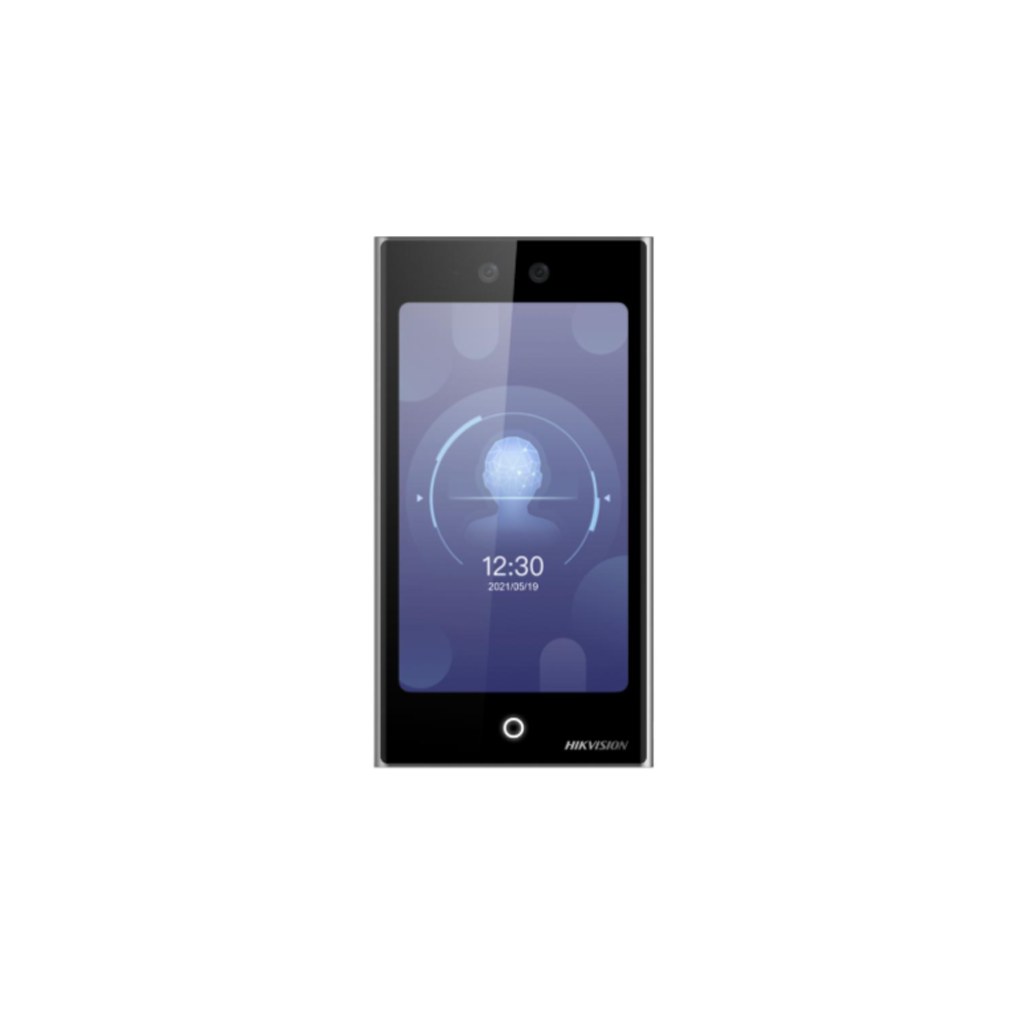

HIKVISION DS-K1T673TDWX
Face Recognition Terminal
Features
7-inch LCD touch screen,2 Mega pixel wide-angle lens
Recognition distance: 0.3 to 3 m
Face recognition duration ＜ 0.2 s/User
Face recognition accuracy rate ≥ 99%
Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
Face mask detection
100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000
event capacity
Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
Supports single person and multiple people (Up to 5 people) recognition
Specification
| System | |
| ROM | 8 GB |
| RAM | 1 GB |
| Operation system | Linux |
| Display | |
| Operation method | Capacitive touch screen |
| Resolution | 600 × 1024 |
| Size | 7-inch |
| Type | Touch screen |
| Video | |
| FOV | HFOV= 75.5°; VFOV= 41.5°; DFOV= 87° |
| Focal length | 4 mm |
| Aperture | F1.1 |
| Pixel | 2 MP |
| Lens | Dual-lens |
| WDR | Support |
| Video standard | PAL (Default)/NTSC |
| Audio | |
| Audio compression standard | G.711U |
| Audio compression bitrate | 64 Kbps |
| Tone quality | Built-in omnidirectional microphone |
| Volume adjustment | Support |
| Power output | 1.5 W |
| Network | |
| Communication protocol | IPV4: SADP, SIP, RTSP, ISAPI, ISUP 5.0 IPV6: RTSP, ISAPI |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Wired network | Support 10/100/1000 Mbps self-adaptive |
| Interface | |
| Alarm input | 2 |
| Alarm output | 1 |
| USB | 1 (For Module) |
| Audio Output Interface | 1 (3.5 mm) |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| TAMPER | 1 |
| Capacity | |
| Fingerprint capacity | 10,000 (With fingerprint module) |
| Card capacity | 500,000 |
| Face capacity | 100,000 |
