描述

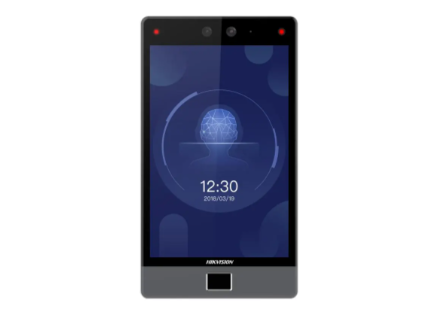

HIKVISION DS-K1T680DFG Ultra Series Wall-Mounted Face Access Terminal 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。
Ultra Series Wall-Mounted Face Access Terminal
- 8-inch touch screen with bezel-less design
- Presents card on the screen to authenticate
- Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
- 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), 10,000 fingerprint capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, 3G/4G
- Two-way audio with indoor station and master station
- Configuration via the web client and mobile client
- Customizes attendance status name
Specification
System
- Operating System : Linux
Display
- Screen Size : 8-inch
- Operation Method : Capacitive touch screen
- Resolution : 1280 × 800
Video
- Lens : × 2
- Resolution : 2 MP
- FOV : HFOV= 88°；VFOV= 44°；DFOV=108°
- Video Standard : PAL (Default) and NTSC
Network
- Wired Network : 10 M/100 M/1000 M self-adaptive
- 3G/4G : Support
Interface
- Network Interface : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 2
- Alarm Output : 1
- TAMPER : 1
- RS-485 : 1
- Wiegand : 1
- USB : 1
Capacity
- Face Capacity : 100000
- Fingerprint Capacity : 10000
- Card Capacity : 100000
- Event Capacity : 150000
Authentication
- Face Recognition Distance : 0.3 to 3 m
- Face Recognition Accuracy Rate : ≥99%
- Face Recognition Duration : ＜ 0.2 s
- Card Type : DESfire card;Felica card
General
- Power Supply : 12-24 VDC, 3 A
- Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity : 0 to 90% (No condensing)
- Protective Level : IP65
- Dimensions : 127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” )
- Power Supply Method : 12 VDC/24 VDC Power Adapter
Function
- Language : English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
- Face Anti-Spoofing : Support
- Hik-Connect : Support
