HIKVISION DS-K1T680DG1 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

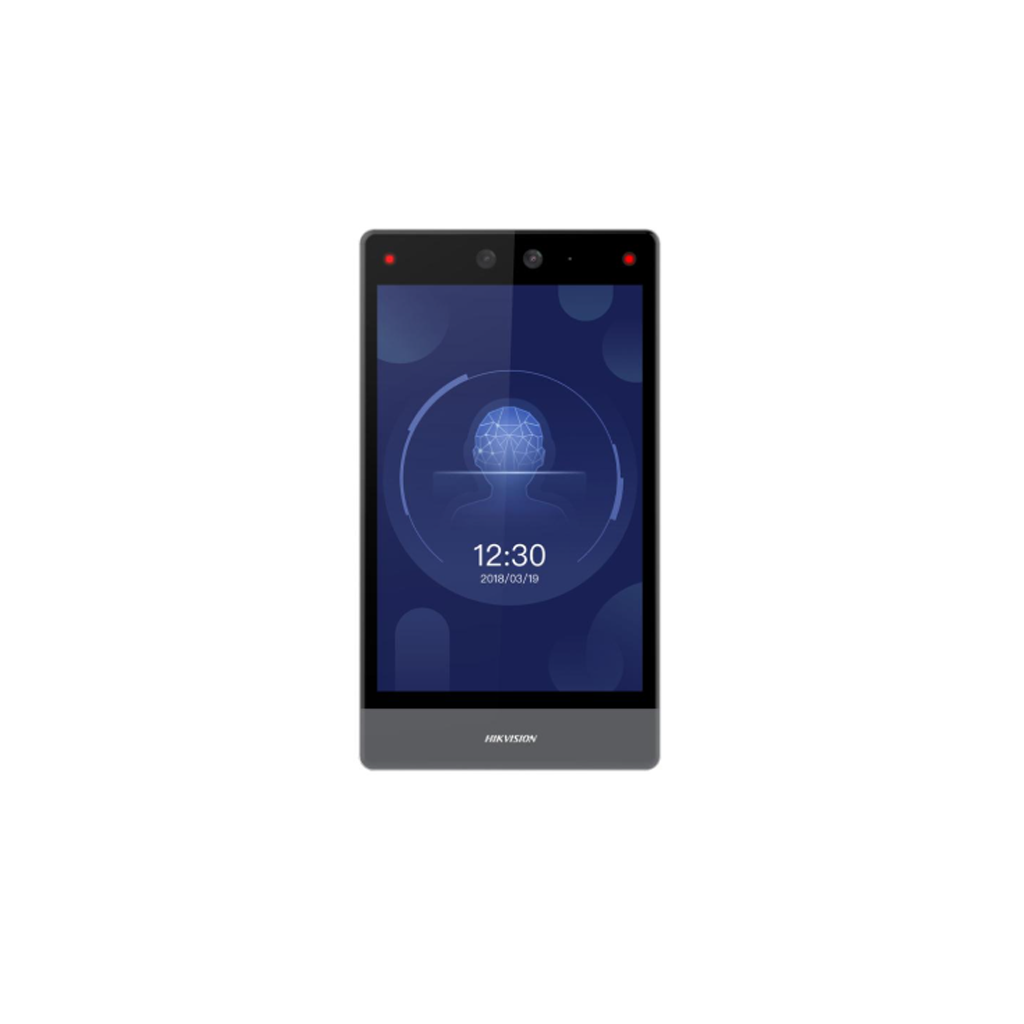

HIKVISION DS-K1T680DG1
Face Recognition Terminal
Features
8-inch touch screen with bezel-less design
Presents card on the screen to authenticate
Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), and 150,000 event capacity
Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, 3G/4G
Two-way audio with indoor station and main station
Configuration via the web client and mobile client
Customizes attendance status name
Specification
| Display | |
| Screen size | 8 inch |
| Operation method | Capacitive touch screen |
| Type | LCD |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 88°; VFOV = 44°; DFOV = 108° |
| Network | |
| Wired network | Support |
| Interface | |
| Network interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card type | M1 card,DESfire card,Felica card |
| General | |
| Power supply | 12 VDC to 24 VDC, 3 A |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (No condensing) |
| Protective level | IP65 |
| Dimensions | 127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” ) |
| Function | |
| Hik-Connect | Support |
| QR code recognition | Support. The dimension of the recognized QR code picture should be larger than 6 cm × 6 cm. |
| Face anti-spoofing | Support |
