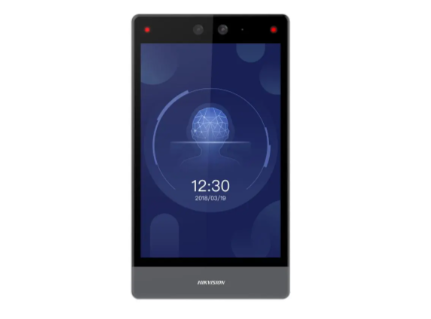

Skip to contentHIKVISION DS-K1T680DW Ultra Series Wall-Mounted Face Access Terminal
描述
Ultra Series Wall-Mounted Face Access Terminal
- 8-inch touch screen with bezel-less design
- Presents card on the screen to authenticate
- Face recognition distance: 0.3 m to 3 m, duration ＜ 0.2 s/User, accuracy rate ≥ 99%
- 100,000 face capacity, 100,000 card capacity (Felica, DESfire, M1), and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi
- Two-way audio with indoor station and main station
- Configuration via the web client and mobile client
- Customizes attendance status name
System
Display
- Screen Size : 8-inch
- Resolution : 1280 × 800
- Operation Method : Capacitive touch screen
Video
- FOV : HFOV= 88°；VFOV= 44°；DFOV=108°
- Resolution : 2 MP
- Lens : × 2
- Video Standard : PAL (Default) and NTSC
Network
- Wired Network : 10 M/100 M/1000 M self-adaptive
- Wi-Fi : Support
Interface
- Network Interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 2
- Alarm Output : 1
- Power Interface : 2-pin
- TAMPER : 1
- USB : 1
Capacity
- Card Capacity : 100,000
- Face Capacity : 100,000
- Event Capacity : 150,000
Authentication
- Card Type : M1 card;DESfire card;Felica card
- Card Reading Distance : 0 to 5 cm
- Card Reading Duration : ＜ 1 s
- Face Recognition Duration : ＜ 0.2 s
- Face Recognition Accuracy Rate : ≥99%
- Face Recognition Distance : 0.3 to 3 m
General
- Power Supply Method : 12 VDC/24 VDC Power Adapter
- Power Supply : 12-24 VDC, 3 A
- Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity : 0 to 90% (No condensing)
- Dimensions : 127.3 mm × 232.1 mm × 23.5 mm (5.0” × 9.1” × 0.9” )
- Protective Level : IP65
Function
- Language : English, Thai, Brazilian Portuguese, Russian, Spanish, Arabic, Japanese, Ukrainian, and Indonesian
- Hik-Connect : Support
- Face Anti-Spoofing : Support
- Time Synchronization : Support
