HIKVISION DS-K1T681DBWX 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

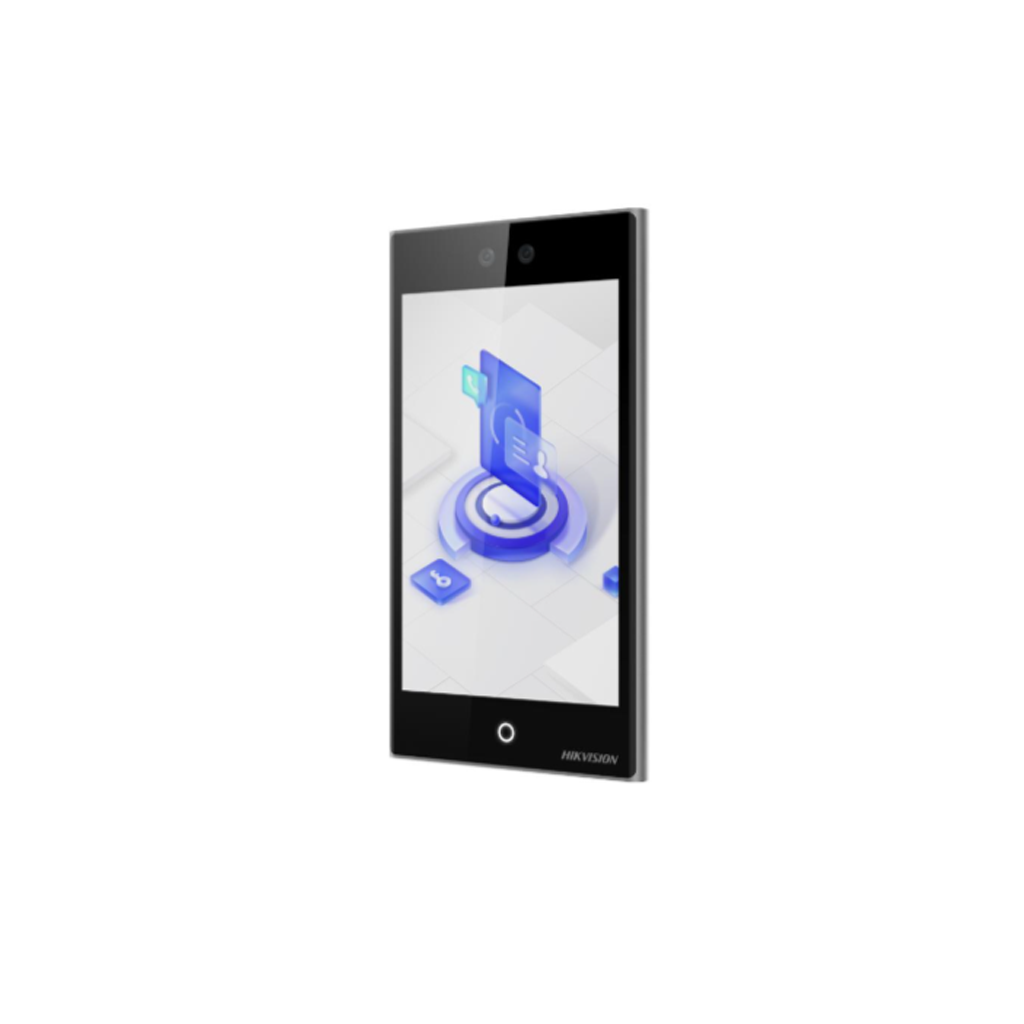

HIKVISION DS-K1T681DBWX
Face Recognition Terminal
Features
Android 11 operation system
8-inch LCD touch screen, 2 MP wide-angle lens
Face recognition duration ＜ 0.2 s/User, face recognition accuracy rate ≥ 99%
Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
Face mask detection
100,000 face capacity, 10,000 fingerprint capacity (with fingerprint module), 500,000 card capacity, and 500,000
event capacity
Supports ISAPI, ISUP 5.0, TCP/IP
Supports face recognition of single person and multiple people (up to 5 people)
Recognition distance: 0.3 to 3 m
Specification
| Display | |
| Screen size | 8 inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| FOV | HFOV = 41.5°; VFOV = 75.5° |
| Audio | |
| Audio quality | Support noise suppression and echo cancellation |
| Network | |
| Wired network | Support |
| Wi-Fi | 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i |
| Interface | |
| Network interface | 1 RJ-45, 10/100/1000 M self-adaptive |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2 |
| Alarm output | 1 |
| TAMPER | 1 |
| RS-485 | 1,RS-485 (Half duplex,HIKVISION） |
| RS-232 | Reserved |
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
| USB | 2, one (type C) for inserting module or data transmission, the other (type A) for data transmission |
| Audio output interface | 1 (3.5 mm) |
| Capacity | |
| Captured picture capacity | 100,000 |
| Authentication | |
| Card type | M1 card,DESfire card,Felica card |
| Card presenting mode | Under screen |
| General | |
| Power supply | 12 VDC, 3 A/24 VDC, 1.5 A |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 0 to 90% (no condensing) |
| Anti-corrosion | 48H (About 2 years protection) |
| Dimensions | 232.5 mm × 29.1 mm × 26.5 mm (9.2″ × 1.1″ × 1.0″) |
| Weight | Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb) |
