描述
HIKVISION DS-K1T690M-T 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

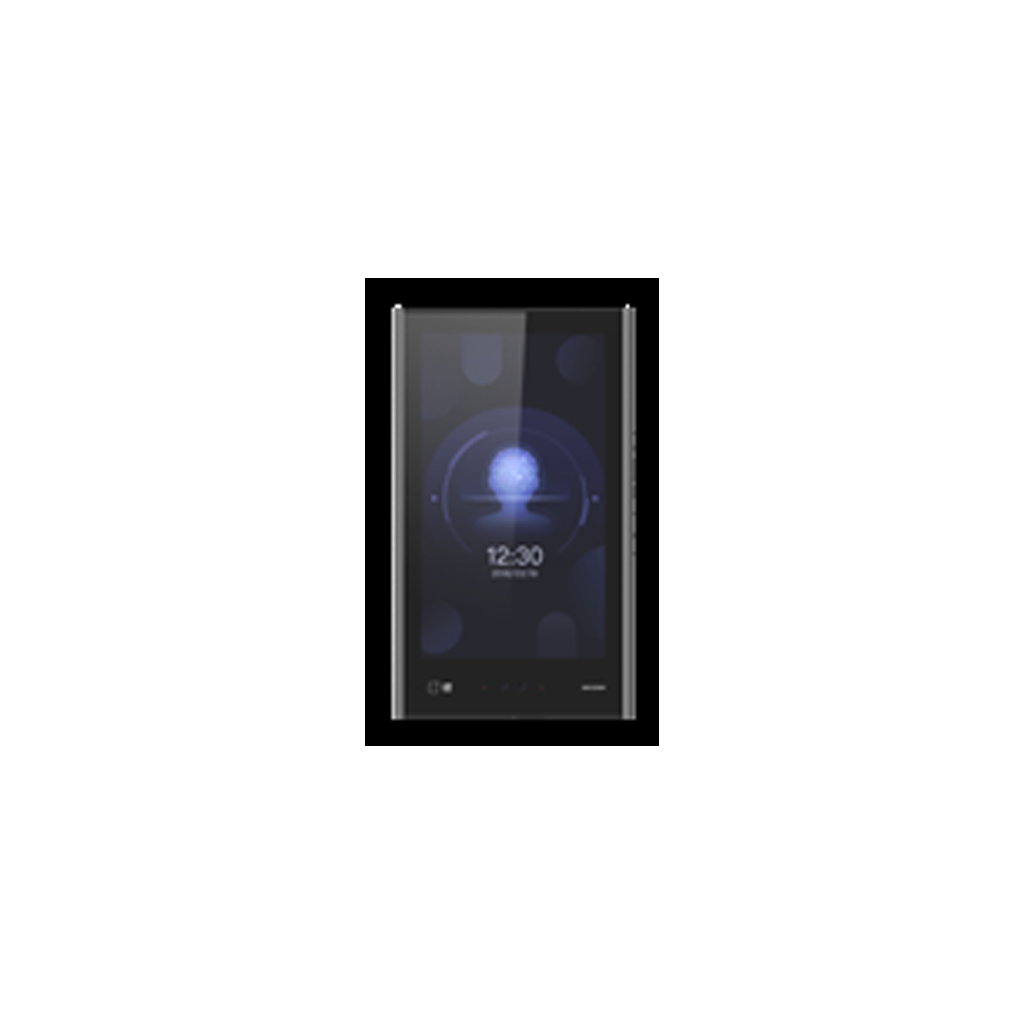

HIKVISION DS-K1T690M-T
Face Recognition Terminal
Specification
| Power Supply | 12 VDC, 24 VDC Power Adapter, Standard PoE (DS-K1T690M-E1 only) |
| Processor | 32 Bit |
| Storage | Card: 150,000 Face: 100,000 Event: 150,000 |
| Card Reading Mode | M1 card |
| Communication Mode | ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi (DS-K1T690MW only) |
| LCD Screen | 15.6-inch Capacitive touch screen, gesture recognition is available Resolution: 1920×1080 |
| Camera | 2 MP dual-lens camera, with IR supplement light, WDR |
| Face Authentication Duration | 1:N < 0.2 s |
| Face mask detection | Support |
| Fingerprint Capacity | 10,000 (DS-K1T690MF-X only) |
| Input Interface | Network × 2, RS-485 × 1, Wiegand × 1, USB × 1, IO input × 2, door contact × 1, exit button ×1, tamper × 1 |
| Output Interface | Lock × 1, Alarm Output × 1 |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Protection Level | IP65 |
| Working Humidity | 10 % to 90 % (No condensing) |
| Dimension | 432 mm × 251 mm × 35 mm (17.0″ × 9.9″ × 1.4″) |
