HIKVISION DS-K1T804AEF 是海康威視指紋門禁終端。香港防盜為安裝商及經銷商。須現場測試安裝高度及登記；手套或手濕不建議只用指紋。規格以下方原廠資料為準。

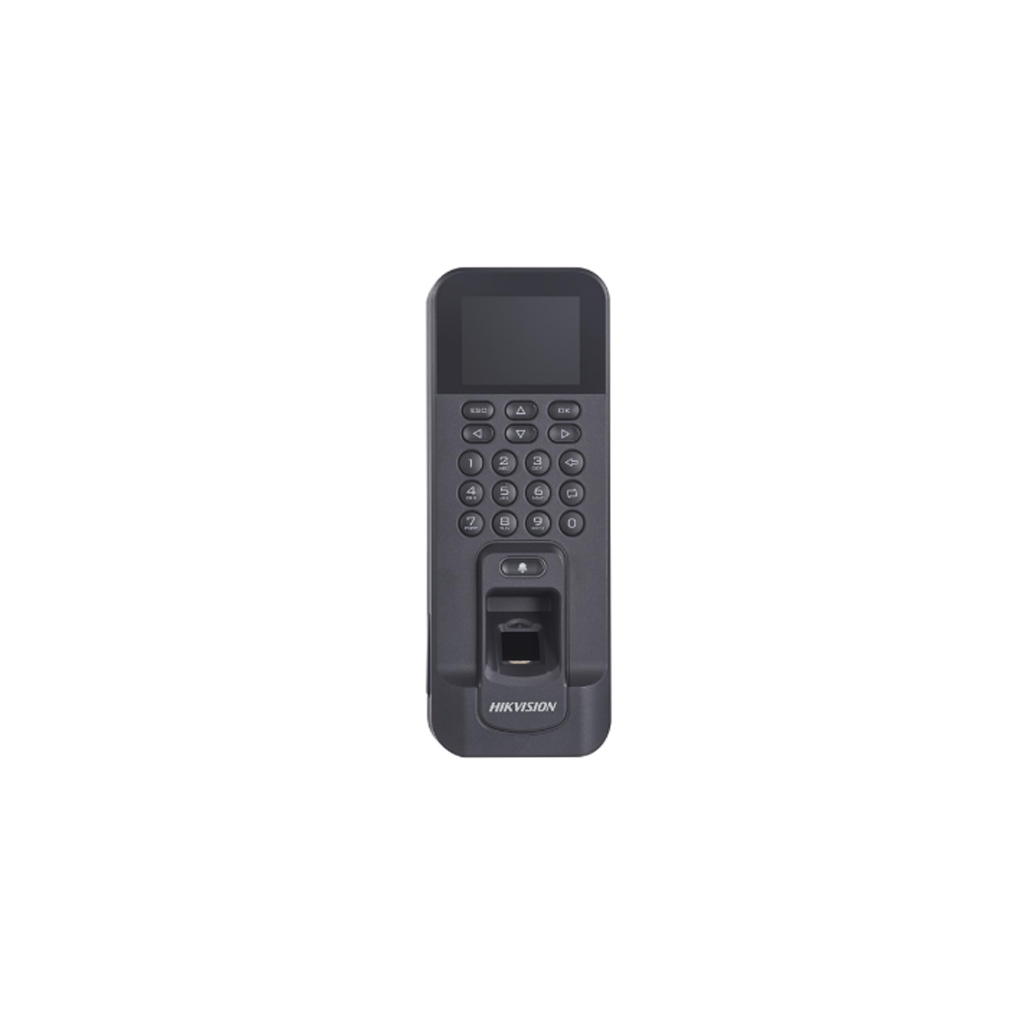

HIKVISION DS-K1T804AEF
Fingerprint Access Control Terminal
Features
Integrated management of access control and the attendance
2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
Transmission modes of wired network (TCP/IP) and wireless network
Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
Different authentication types can be configured according to different situations, authentication via PIN code is also
supported
Stand-alone operation: locally adds person, card and fingerprints information
Exports the presenting card data and the attendance report to the USB flash drive
Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
Generates the attendance report automatically
EM card reading
Secure door control unit accessing via RS-485 connection
Supports fingerprint card reader (DS-K1201 series) accessing
Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, duress card alarm, and so on
Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish,
Indonesian, and Ukrainian
Accurate data and time display provided by built-in electronic clock
Check the device running status via the Watchdog. When exception status occurs, the system will reboot automatically
Data can be permanently saved after power-off
Supports transmitting data via Wi-Fi
Operates via Hik-Connect mobile client
Supports ISAPI protocol and ISUP 5.0 protocol
Specification
| System | |
| Operating system | Linux |
| Screen | |
| Screen size | 2.4-inch |
| Resolution | 320 × 240 |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Wi-Fi | Support |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock control | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 1 |
| Alarm output | 1 |
| TAMPER | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 3000 |
| Fingerprint capacity | 3000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | EM card |
| Card reading distance | 0 to 5 cm |
| Card reading duration | ＜ 1 s |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | ＜ 1 s |
| Fingerprint FAR | ≤ 0.001 % |
| Fingerprint FRR | ≤ 0.01 % |
| Others | |
| Indicator | Power/status (red/green) |
| Power supply | 12 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | Black (included), gold (optional), silver (optional), white (optional) |
| Dimensions | 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″) |
| Installation | Surface mounting |
